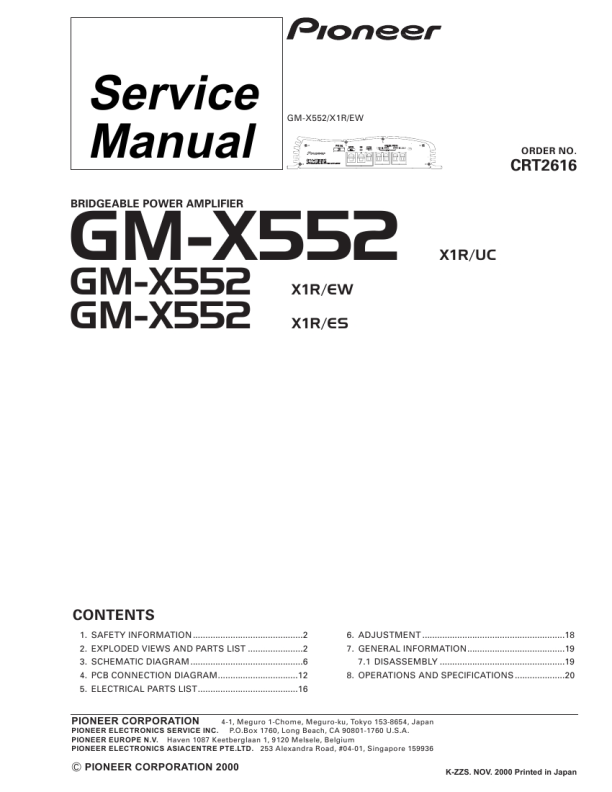

GM-X552
7. GENERAL INFORMATION
7.1 DISASSEMBLY
- Removing the Case and the Panel (Fig.1) Case Remove the four screws. Remove the two screws. Remove the three screws and then remove the Case.
Remove the six screws and then remove the Panel. Panel Fig.1
- Removing the Amp Unit (Fig.2) Remove the fourteen screws. Remove the screw. Remove the twelve screws and then remove the Amp Unit.
Fig.2 Amp Unit
19
|
|
|
> |
|
