Some of the pictures in this manual are a bit irritating. I had to dissassemble the unit and some of the screws have different threads, which is not mentioned in this manual. Also some of the drawings of the boards look different than the actual boards.
After all, the manual was very useful. I was able to recalibrate the capstan drive and it is working fine again.
 ;
This manual is very good. 303 pages scanned in a very high resolution. My camera has bad, leaking capacitors which all of the V5000 models are suffering from these days.
There is a huge part list with all capacitors, transistors etc. in this manual which helped me a lot. Otherwise I would not have been able to buy replacement parts.
The dissassembly guide is very enormous and detailed. Unlike on the Panasonic MS1 manual I downloaded here it actually looks like the real parts look. And the screws are labeled correctly, so you shouldn't have any left after the repair. ;)
;
has all the schematics you could need,and very well laid out format also has all part numbers along with an exploded view which is helpful
;
Very nice to have! Now it is no problem to understand how it is put together.
Helps me a lot.
;
good scans, all is clear. all pages in order. recommended

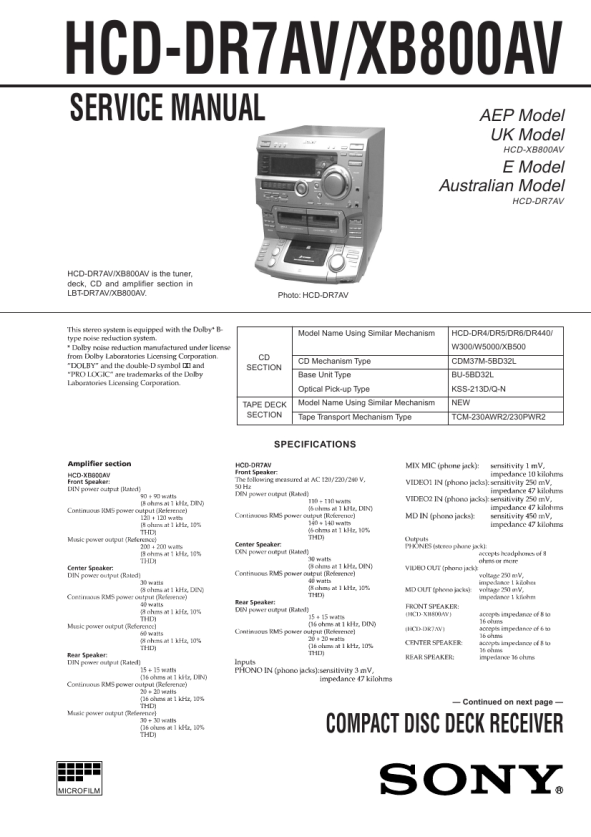

AMS Test Mode � This mode is used for checking the AMS operations of the tape deck. JIG 7-819-039-12 Alignment tape, AMS-110A Procedure: 1. Press the 1/u button to turn the set ON. 2. Set the tape (AMS-110A). 3. Press the three buttons t/CLOCK SET , ENTER , and DISC 3 button simultaneously. 4. �TEST MODE� is displayed on the fluorescent display tube. 5. Press the FUNCTION button and switch the function to the deck with the tape (AMS-110A). 6. Press the CD SYNCHRO button. �AMS CHECK� is displayed on the fluorescent display tube and the tape is rewound. 7. AMS starts in the normal direction. If the AMS count is 2 at shut down, proceed to step 8. �NG� is displayed at other times, and the deck stops. 8. AMS starts in the opposite direction. If the AMS count is 2 at shut down again, �OK� is displayed. �NG� is displayed at other times. Aging Mode During the aging mode, both the CD player and tape deck are executed together. � If an error occurs: Aging stops, and the error state is displayed on the fluorescent display tube. � If no error occurs: Aging is repeated. Procedure: 1. Press the 1/u button to turn the set ON. 2. Load 10 minute tapes with unbent rec-proof tabs in decks A and B. 3. Set CDs on the DISC 1 and DISC 4 tables. 4. Set the CD mode REPEAT to OFF and PLAY MODE to ALL DISCS. (Press the PLAY MODE and REPEAT buttons to set these modes.) 5. Press the FUNCTION button to switch the function to �CD�. 6. Press the three buttons t/CLOCK SET , ENTER , and DISC 4 button simultaneously. 7. Aging starts. 8. To end aging, press the 1/u button to turn the set OFF. Aging Sequence: Aging is performed in the following sequence. � Tape Deck 1. The tape in deck A is rewound. �TAPE A AG-1� is displayed. 2. The FWD side of deck A is played for two minutes. �TAPE A AG-2� is displayed. 3. The tape in deck A is fast forwarded. �TAPE A AG-3� is displayed. Fast forward is carried out for 20 seconds or to the tape end. 4. The RVS side of deck A is played for two minutes. �TAPE A AG-4� is displayed. 5. The tape in deck A is rewound. �TAPE A AG-5� is displayed. 6. The FWD side of deck B is played for two minutes. �TAPE B AG-2� is displayed. 7. The tape in deck B is fast forwarded. �TAPE B AG-3� is displayed. Fast forward is carried out for 20 seconds or to the tape end. 8. The RVS side of deck B is played for two minutes. �TAPE B AG-4� is displayed. 9. The tape in deck A is rewound. �TAPE A AG-5� is displayed. 10. Repeated from step 2. � CD 1. The tray rotates. 2. DISC 1 is chucked. 3. The TOC is read. 4. The first track is played for 2 seconds. 5. The last track is played for 2 seconds. 6. The tray rotates. 7. DISC 4 is chucked. 8. The TOC is read. 9. The first track is played for 2 seconds. 10. The last track is played for 2 seconds. 11. Repeated from step 1.
� 13 �
|
|
|
> |
|
