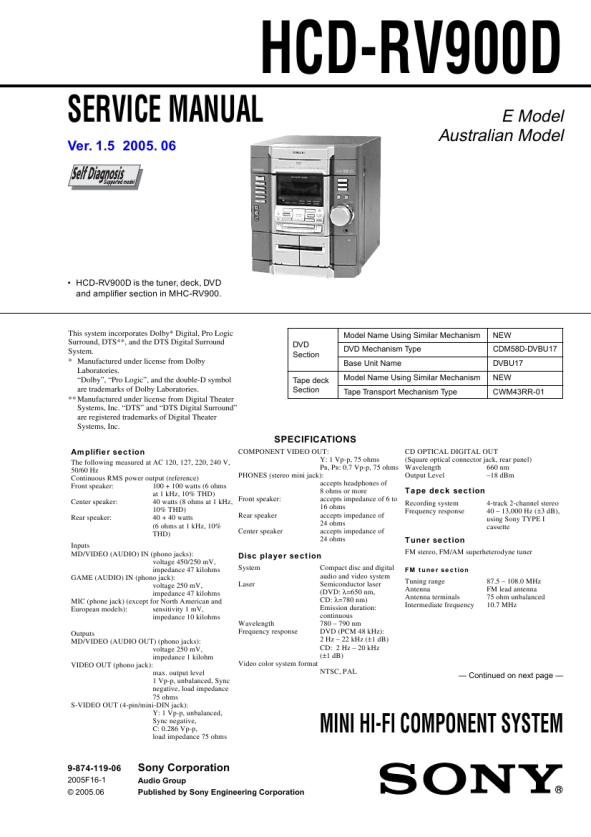

SONY HCD-RV900D
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of SONY HCD-RV900D Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 DFS-700P SONY Service Manual by MILTIADES BEAZER;
nice completed SERVICE MANUAL as the description THANK YOU !!!-
 VSX453 PIONEER Service Manual by Louie Role;
The service manual is as described and received the link to the download sooner than expected. Great service, quality product. This site is a big help in the electronics repair business.
 3510 COLOR NORDMENDE Service Manual by Antonio De Francesco;
Il service manual molto accurato. Rapidi nella risposta
 DE95 HITACHI Service Manual by Dmitry Khazov;
Quick site processing. A complete and very useful manual with all details. Thank you!
 TC-D5PROII SONY Service Manual by Dmitry Khazov;
Quick service response. A useful and very rare service manual with all details. I recomend this service.

Text excerpt from page 100 (click to view)
HCD-RV900D

2-3. Track/Layer Jump Track/Layer Jump FWD R.Lj L0>L1 REV L.Lj L1>L0 Fine FWD U.Fj L0>L1 Fine REV D.Fj L1>L0 Dirc FWD Dirc REV Dirc FWD Dirc REV

2-5. EEPROM Write Adjust EEPROM Write Adjust 1. 2. 3. 4. 5. 6. Focus Focus Trk. —————— Trk. EQ Offset Gain Offset Coarse Gain Boost

1. 1Tj 2. 1Tj 3.500Tj 4.500Tj 5.10kTj 6.10kTj 7.20kTj 8.20kTj

0.All Servo Off 0. All Servo Off Exit: RETURN On this screen, track jump, etc. can be performed. Only for the DVD dual layer disc, the focus jump and layer jump are displayed in the right field Exit: RETURN On this screen, each item can be adjusted automatically. Select the desired number [1] to [10/0] from the remote commander, and selected item is adjusted automatically.

[1] 1Tj FWD : 1 track jump forward. [2] 1Tj REV : 1 track jump reverse. [3] 500Tj FWD: 500 track jump (fine search)forward. [4] 500Tj REV : 500 track jump (fine search) reverse. [5] 10kTj FWD: 10k track jump (direct search) forward. [6] 10kTj REV : 10k track jump (direct search) reverse. [7] 20kTj FWD: 20k track jump (direct search) forward. [8] 20kTj REV : 20k track jump (direct search) reverse. [10/0] : All servo off.
2-4. Non EEPROM Write Adjust Non EEPROM Write Adjust 1. 2. 3. 4. 5. 6. Focus Focus Trk. Trk. Trk. EQ Offset Gain Offset Coarse Offset Fine Gain Boost

[1] Focus Offset : Adjusts focus offset. [2] Focus Gain : Adjusts focus gain. [3] TRK. Offset : Adjusts tracking offset of the RF amp
(IC001) side. [5] TRK. Gain : Adjusts track gain. [6] EQ Boost : Adjusts amount of boost of equalizer. [10/0] : All servo off. 2-6. Memory Check Display images are shown as follows, and all two screens are able to switch by the O key (UP) or o key (DW). EEPROM Data 1/2 CD Focus Gain xx Trk. Gain xx Focus Offset xx Trk. Offset xx EQ. Boost xx PI Level xx Fcs. Balance -Jitter xx xx Mirror Time xx FE Level -Traverse Lv1. -Next:DW Default:CLR SL L0 L1 xx xx xx xx xx xx xx xx xx xx xx xx xx xx xx xx -- -xx -- -xx xx xx xx -xx -- -xx -- -Exit:RET

0.All Servo Off

Exit: RETURN On this screen, each item can be adjusted manually. Select the desired number [1] to [10/0] from the remote commander, and current setting for the selected item will be displayed, then increase or decrease numeric value with the O key or o key. This value is stored in the EEPROM. If CLV has been applied, the jitter is displayed for reference for the adjustment.

EEPROM Focus Trk. Focus Trk. EQ.

Data 2/2 Gain Gain Offset Offset Boost

CDRW DVDRW xx xx xx xx xx xx xx xx xx xx

[1] Focus Offset : Adjusts focus offset. [2] Focus Gain : Adjusts focus gain. [3] TRK. Offset : Adjusts tracking offset of the RF amp
(IC001) side.

[4] TRK. Offset : Adjusts tracking offset of the DSP (IC401)
side. [5] TRK. Gain : Adjusts track gain. [6] EQ Boost : Adjusts amount of boost of equalizer. [10/0] : All servo off. Next:UP Default:CLR Exit:RET

On this screen, current servo adjusted data stored in the EEPROM are displayed. The adjusted data are initialized by pressing the [CLEAR] key, but be careful that they are not recoverable after initialization. Before clearing the adjusted data, make a note of the set data. This screen will also appear if [0]-All is selected in the Drive Auto Adjustment. In this case, default setting cannot be made.
