EXPLODED VIEWS Parts List
Mark No. 1 NSP NSP NSP 2 NSP NSP NSP 3 NSP 4 NSP 5 NSP 6 7 NSP NSP NSP 8 NSP NSP NSP 9 NSP 10 11 12 13 14 15 16 17 18 19 20 21 22 23 Description 1..SP Unit ASSY L 2..Speaker 2..Base L 2..Dumper 1..SP Unit ASSY R 2..Speaker 2..Base R 2..Dumper 1..Switch Board ASSY 2..Switch 2..PC Board 2..Resistance 1..Case ASSY L 2..Ring L 2..Case L 2..Switch Label 1..Case R ASSY 2..Ring R 2..Case R Cord Cord ---------------Jack ---------------Shaft Plug Holder Stopper Ring Cap L Cap R Stopper A Stopper B Joint L Joint R Hanger L Part No. WXX1386 WWW1089 WNK2902 WER1142 WXX1387 WWW1089 WNK2903 WER1142 WXX1388 WSH1022 WNP1079 RS1PMF4R7 WXX1389 WNA1168 WNK2904 WAN1096 WXX1390 WNA1169 WNK2905 WDC1087 WDC1089 WKN1025 NSP NSP 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 Mark No. 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 Description Hanger R Case Holder Slider Slider Cover Inner Slider A Inner Slider B Cap Cover Hanger Cover L Hanger Cover R Click Plate Knob Knob Holder Click Shaft Clamper Cover Clamper 1..Head Band 2..Cord 2..Bandplate Hanger Cap Ear Pad Head Band Cushion Bolt Spring Spring Spring L Spring R Plate Spring Steel Ball Screw Screw Screw Screw Hexagon Socket Screw Connector Screw Screw Washer Part No. WNH1013 WNH1014 WNK2892 WNK2893 WNK2894 WNK2895 WNK2896 WNK2897 WNK2898 WNK2899 WNK2900 WNK2901 WNK2906 WNK2907 WNK2908 WNK2909 WDC1088 WNA1166 WNK2938 WNV1142 WNV1144 WBA1012 WBH1057 WBH1058 WBH1059 WBH1060 WBK1016 WET1027 BMZ30P030FCC PMZ20P120FTB JFZ20P035FTB PPZ20P040FTB PPZ20P080FTB PPZ30P060FTB BMZ30P040FTB D WB30FTC A
B
C
WLA1034 WNA1167 WNA1170 WNH1006 WNH1007 WNH1008 WNH1009 WNH1010 WNH1011 WNH1012
Disassembly Procedures
How to disassemble the hanger cover
Screw Stopper B Screw Hanger Cover L Bolt Washer Shaft Spring L
Note: As both ends (the thicker parts) of the shaft will serve as axes of rotation, be careful NOT to damage them. Some scratches in the constricted middle part may be tolerable.
Screw Joint L
Stopper A Click Plate
E
After the bolt removed
is
The shaft can be easily removed if you slide it by holding the point shown in the above photo pressed.
How to disassemble the case holder
Screw Screw Clamper Cover Clamper Spring Connector Screw
To remove the spring these photos. , bend it as shown in
Click Shaft
F

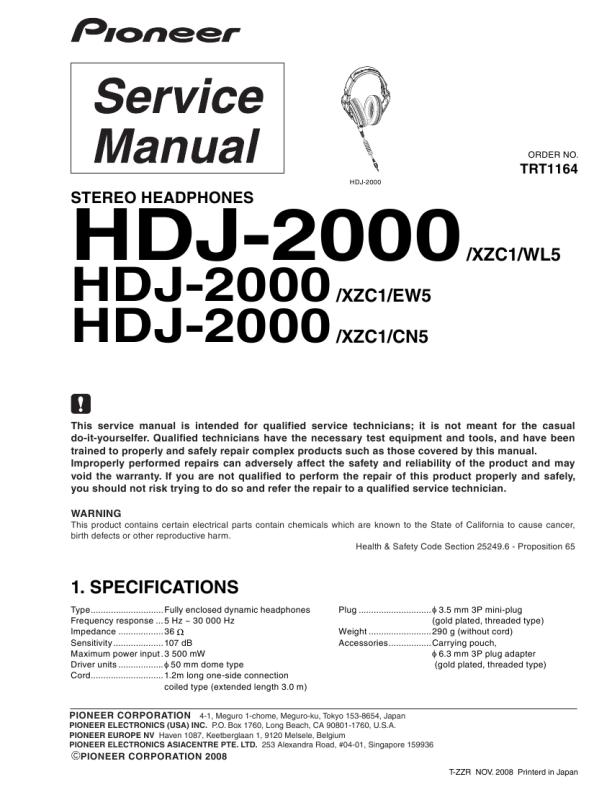

HDJ-2000
5 6 7 8
