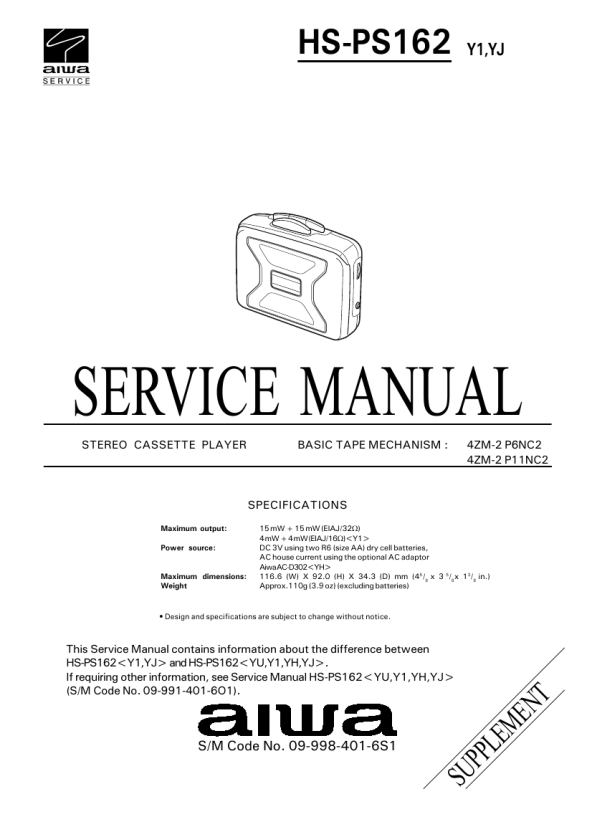

HS-PS162
Y1,YJ
SPECIFICATIONS
Maximum output: Power source: Maximum dimensions: Weight
15 mW + 15 mW (EIAJ/32W) 4 mW + 4 mW (EIAJ/16W)<Y1> DC 3V using two R6 (size AA) dry cell batteries, AC house current using the optional AC adaptor AiwaAC-D302<YH> 116.6 (W) X 92.0 (H) X 34.3 (D) mm (45/ x 3 5/ x 13/ in.) Approx.110g (3.9 oz) (excluding batteries)
8 8 8
� Design and specifications are subject to change without notice.
This Service Manual contains information about the difference between HS-PS162<Y1,YJ> and HS-PS162<YU,Y1,YH,YJ>. If requiring other information, see Service Manual HS-PS162<YU,Y1,YH,YJ> (S/M Code No. 09-991-401-6O1).
PL
S/M Code No. 09-998-401-6S1
E N T
E M
S U P
SERVICE MANUAL
STEREO CASSETTE PLAYER BASIC TAPE MECHANISM :
4ZM-2 P6NC2 4ZM-2 P11NC2
|
|
|
> |
|
