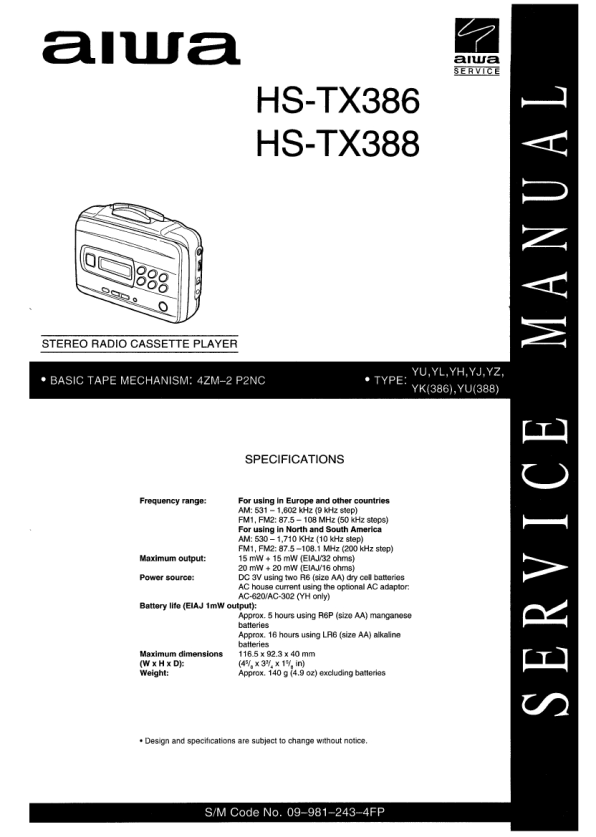

anua
STEREO
RADIO CASSETTE
PLAYER
SPECIFICATIONS
Frequency
For using in Europe and other countries AM: 531 � 1,602 kHz (9 kHz step) FM1, FM2: 87.5 � 108 MHz (50 kHz steps) For using in North and South America AM: 530 � 1,710 KHz (1 O kHz step) FM1, FM2: 87.5 �1 08.1 MHz (200 kHz step) Maximum output: 15 mW + 15 mW (EIAJ/32 ohms) 20mW+20mW(EIAJ/16 ohms) Power source: DC 3V using two R6 (size AA) dry cell batteries AC house current using the optional AC adaptoc AC-620/AC-302 (YH only) Battery life (EIAJ 1mW output): Approx. 5 hours using R6P (size AA) manganese batteries Approx. 16 hours using LR6 (size AA) alkaline batteries Maximum dimensions 116.5 x 92.3x 40 mm (W XHXD): (45/8 x 33/, x 1�1, in) Weight: Approx. 140 g (4.9 OZ) excluding batteries
range:
q
Design and specifications are subject to change without notice.
|
|
|
> |
|
