SPECIFICATIONS
Yu: AM: 531/530 - 1,602/1,710 kHz (9/1OkHz step) 531-1,629 KHz (9 kHz step) FM1, FM2: 87.5167.5- 108/108.1 MHz (50/200 kHz steps) 76-108 MHz(100 kHz step in 76-90 MHz, 50 KHz step in 90-108 MHz) TV: 2CH (59.75 MHz) � 13CH (215.75 MHz) WEATHER: 1CH�7CH(162.400 � 162.550 MHz) Yv: AM: 531/530 - 1,602/1,710 kHz (9/1OkHz step) FMI: 65/87.5 - 74/108.1 MHz (10/200 kHz steps) FM2: 87.5/87.5 - 108/108.1 MHz (50/200 kHz steps) YZ,YK: AM: 531/530 - 1,602/1,710 kHz (9/1OkHz Step) FM1,FM2: 87.5/87.5 - 108/108.1 MHz (50/200 kHz steps) YH,YJ,YL: AM: 531/530 � 1,602/1,71OkHz (9/10 kHz step) 531-1,629 KHz (9 kHz step) FM: 87.5/87.5 � 108/108.1 MHz (50/200 kHz steps) 76-108 MHz (100 kHz step in 76 � 90 MHz, 50 KHz step in 90-108 MHz) Maximum output: 15mW + 15 mW (EIAJ/32 ohms) 20mW+20mW(EIAJ/16 ohms) Power source: Battery DC 3V, R6 (size AA) x 2 YU,YL,YH,YJ: Domestic AC power (using optional AC adaptoc AIWA AC-620/302) YV,YZ,YK Domestic AC power (using optional AC adaptoc AIWA AC-3001302) Battery life (EIAJ, 1mW output, plsyback~ Approx. 9 hours using R6P (size AA) manganese batteries Approx. 22 hours using LR6 (size AA) alkaline batteries Maximum dimensions 112.6 x 86.8x 34.9 mm (W XHXD): (4�/, x 3�/, x 17/16 in) Weight: Approx. 172 g (6.02 OZ)excluding batteries Frequency range:
q q
Design and specifications are subject to change without notice. Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. �DOLBY� and the double-D symbol no are trademarks of Dolby Laboratories Licensing Corporation.
2

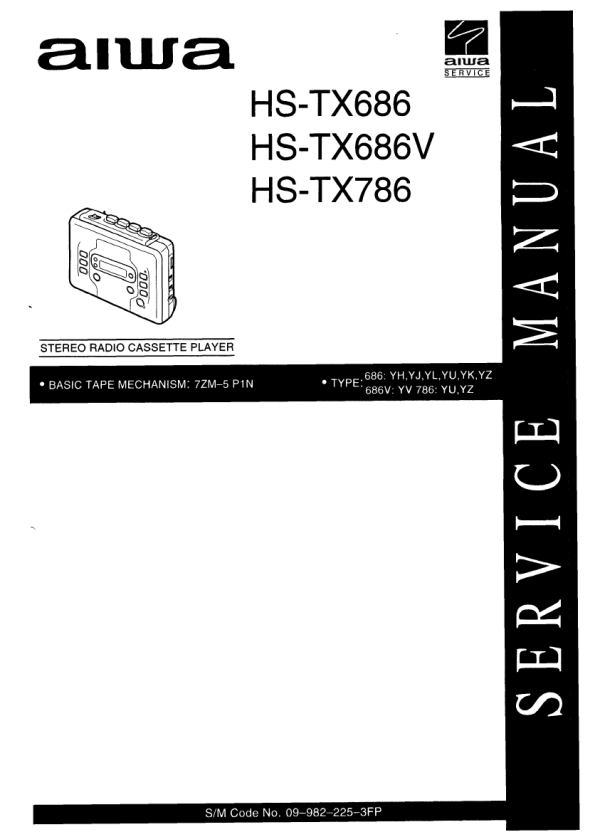

 $4.99 HSTX786 AIWA
Owner's Manual Complete owner's manual in digital format. The manual will be available for download as PDF file aft…
|
