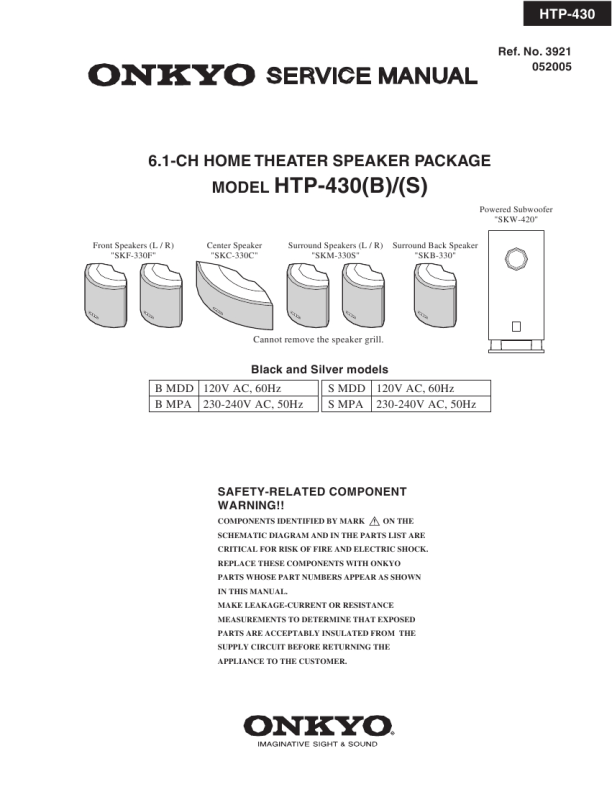

HTP-430
Ref. No. 3921 052005
SERVICE MANUAL
6.1-CH HOME THEATER SPEAKER PACKAGE MODEL HTP-430(B)/(S)
Powered Subwoofer "SKW-420" Front Speakers (L / R) "SKF-330F" Center Speaker "SKC-330C" Surround Speakers (L / R) "SKM-330S" Surround Back Speaker "SKB-330"
Cannot remove the speaker grill.
Black and Silver models B MDD 120V AC, 60Hz B MPA 230-240V AC, 50Hz S MDD 120V AC, 60Hz S MPA 230-240V AC, 50Hz
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE THESE COMPONENTS WITH ONKYO PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL. MAKE LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER.
|
|
|
> |
|
|
