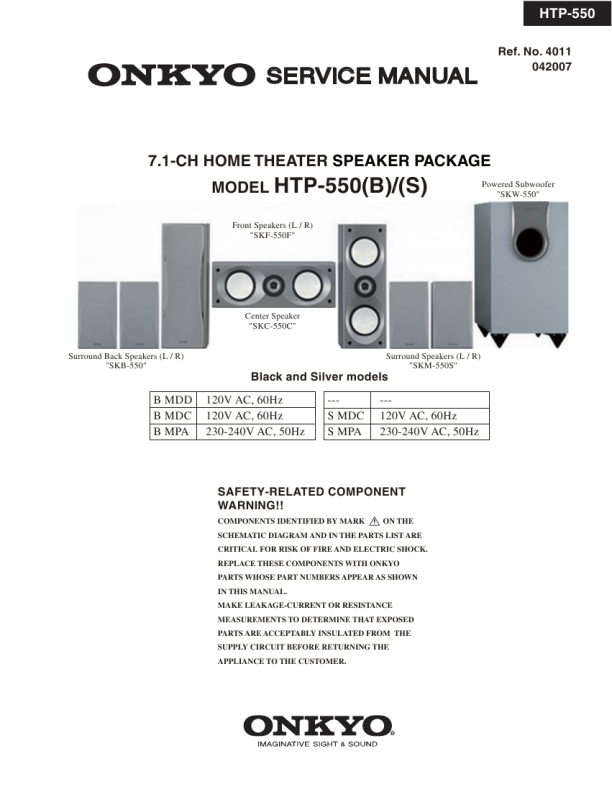

HTP-550
Ref. No. 4011 042007
SERVICE MANUAL
7.1-CH HOME THEATER SPEAKER PACKAGE MODEL HTP-550(B)/(S)
Front Speakers (L / R) "SKF-550F" Powered Subwoofer "SKW-550"
Center Speaker "SKC-550C" Surround Back Speakers (L / R) "SKB-550" Surround Speakers (L / R) "SKM-550S"
Black and Silver models B MDD B MDC B MPA 120V AC, 60Hz 120V AC, 60Hz 230-240V AC, 50Hz --S MDC S MPA --120V AC, 60Hz 230-240V AC, 50Hz
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE THESE COMPONENTS WITH ONKYO PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL. MAKE LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER.
|
|
|
> |
|
