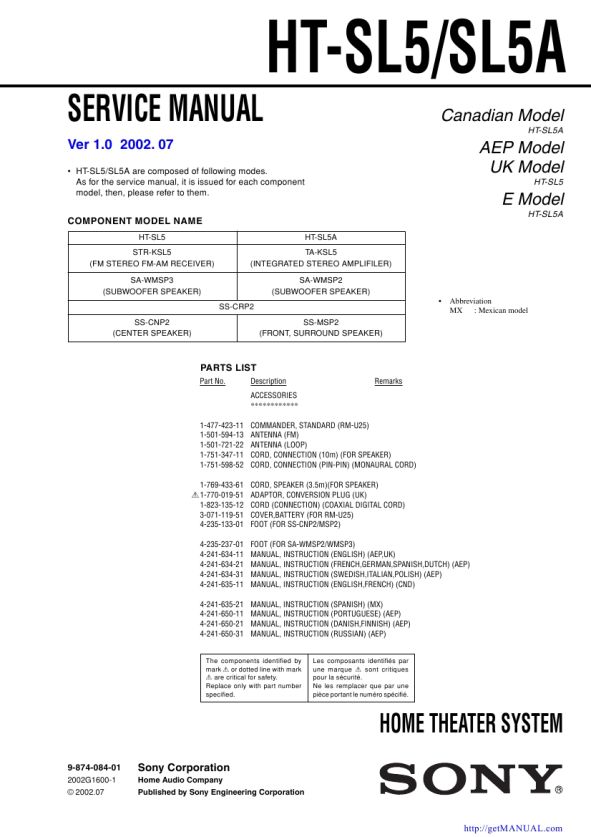

HT-SL5/SL5A
SERVICE MANUAL
Ver 1.0 2002. 07
� HT-SL5/SL5A are composed of following modes. As for the service manual, it is issued for each component model, then, please refer to them.
Canadian Model
HT-SL5A
AEP Model UK Model
HT-SL5
E Model
HT-SL5A
HT-SL5A
COMPONENT MODEL NAME
HT-SL5 STR-KSL5 (FM STEREO FM-AM RECEIVER) SA-WMSP3 (SUBWOOFER SPEAKER) SS-CRP2 SS-CNP2 (CENTER SPEAKER) SS-MSP2 (FRONT, SURROUND SPEAKER) TA-KSL5 (INTEGRATED STEREO AMPLIFILER) SA-WMSP2 (SUBWOOFER SPEAKER) �
Abbreviation MX : Mexican model
PARTS LIST
Part No. Description ACCESSORIES ************ 1-477-423-11 1-501-594-13 1-501-721-22 1-751-347-11 1-751-598-52 1-769-433-61 0 1-770-019-51 1-823-135-12 3-071-119-51 4-235-133-01 4-235-237-01 4-241-634-11 4-241-634-21 4-241-634-31 4-241-635-11 4-241-635-21 4-241-650-11 4-241-650-21 4-241-650-31 COMMANDER, STANDARD (RM-U25) ANTENNA (FM) ANTENNA (LOOP) CORD, CONNECTION (10m) (FOR SPEAKER) CORD, CONNECTION (PIN-PIN) (MONAURAL CORD) CORD, SPEAKER (3.5m)(FOR SPEAKER) ADAPTOR, CONVERSION PLUG (UK) CORD (CONNECTION) (COAXIAL DIGITAL CORD) COVER,BATTERY (FOR RM-U25) FOOT (FOR SS-CNP2/MSP2) FOOT (FOR SA-WMSP2/WMSP3) MANUAL, INSTRUCTION (ENGLISH) (AEP,UK) MANUAL, INSTRUCTION (FRENCH,GERMAN,SPANISH,DUTCH) (AEP) MANUAL, INSTRUCTION (SWEDISH,ITALIAN,POLISH) (AEP) MANUAL, INSTRUCTION (ENGLISH,FRENCH) (CND) MANUAL, INSTRUCTION (SPANISH) (MX) MANUAL, INSTRUCTION (PORTUGUESE) (AEP) MANUAL, INSTRUCTION (DANISH,FINNISH) (AEP) MANUAL, INSTRUCTION (RUSSIAN) (AEP)
Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.
Remarks
The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.
HOME THEATER SYSTEM
9-874-084-01
2002G1600-1 © 2002.07
Sony Corporation
Home Audio Company Published by Sony Engineering Corporation
