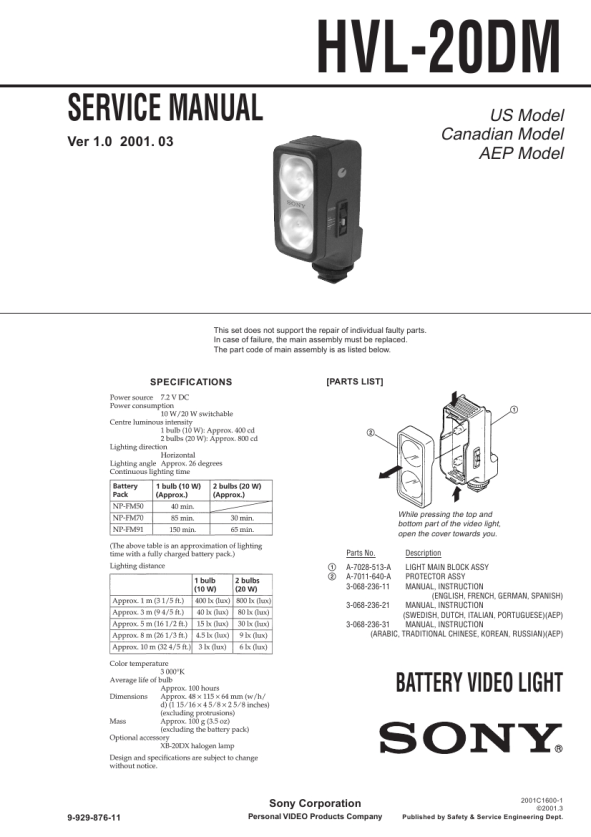

HVL-20DM
SERVICE MANUAL
Ver 1.0 2001. 03
US Model Canadian Model AEP Model
This set does not support the repair of individual faulty parts. In case of failure, the main assembly must be replaced. The part code of main assembly is as listed below.
SPECIFICATIONS
[PARTS LIST]
1 2
While pressing the top and bottom part of the video light, open the cover towards you.
Parts No. 1 2 A-7028-513-A A-7011-640-A 3-068-236-11 Description
LIGHT MAIN BLOCK ASSY PROTECTOR ASSY MANUAL, INSTRUCTION (ENGLISH, FRENCH, GERMAN, SPANISH) 3-068-236-21 MANUAL, INSTRUCTION (SWEDISH, DUTCH, ITALIAN, PORTUGUESE)(AEP) 3-068-236-31 MANUAL, INSTRUCTION (ARABIC, TRADITIONAL CHINESE, KOREAN, RUSSIAN)(AEP)
BATTERY VIDEO LIGHT
Sony Corporation
9-929-876-11
Personal VIDEO Products Company
2001C1600-1 ©2001.3 Published by Safety & Service Engineering Dept.
|
|
|
> |
|
