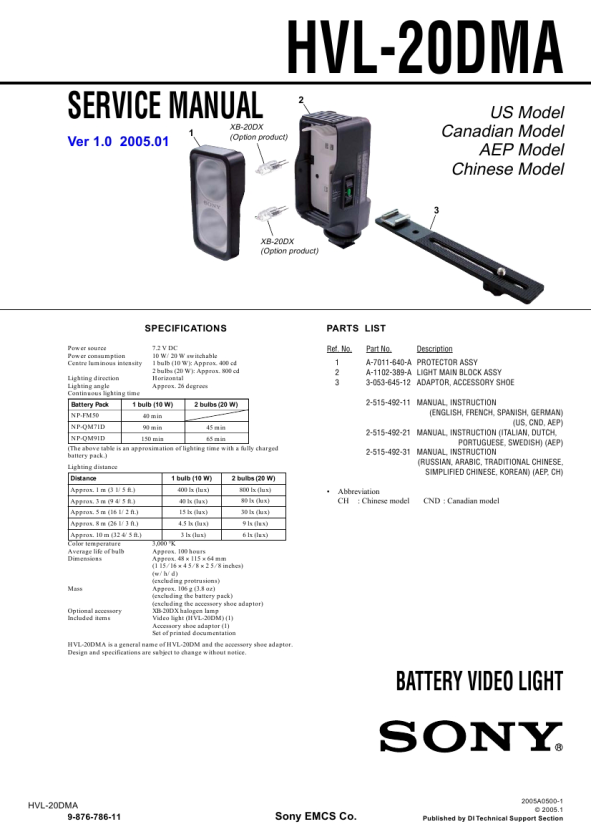

HVL-20DMA
SERVICE MANUAL
Ver 1.0 2005.01
1
XB-20DX (Option product)
2
US Model Canadian Model AEP Model Chinese Model
3
XB-20DX (Option product)
SPECIFICATIONS
Power source Power consumption Centre luminous intensity Lighting direction Lighting angle Continuous lighting time Battery Pack NP-FM50 NP-QM71D NP-QM91D 1 bulb (10 W) 40 min 90 min 150 min 45 min 65 min 2 bulbs (20 W) 7.2 V DC 10 W/20 W switchable 1 bulb (10 W): Approx. 400 cd 2 bulbs (20 W): Approx. 800 cd Horizontal Approx. 26 degrees
PARTS LIST
Ref. No. 1 2 3 Part No. Description
A-7011-640-A PROTECTOR ASSY A-1102-389-A LIGHT MAIN BLOCK ASSY 3-053-645-12 ADAPTOR, ACCESSORY SHOE 2-515-492-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH, GERMAN) (US, CND, AEP) 2-515-492-21 MANUAL, INSTRUCTION (ITALIAN, DUTCH, PORTUGUESE, SWEDISH) (AEP) 2-515-492-31 MANUAL, INSTRUCTION (RUSSIAN, ARABIC, TRADITIONAL CHINESE, SIMPLIFIED CHINESE, KOREAN) (AEP, CH)
(The above table is an approximation of lighting time with a fully charged battery pack.) Lighting distance Distance Approx. 1 m (3 1/5 ft.) Approx. 3 m (9 4/5 ft.) Approx. 5 m (16 1/2 ft.) Approx. 8 m (26 1/3 ft.) Approx. 10 m (32 4/5 ft.) Color temperature Average life of bulb Dimensions 1 bulb (10 W) 400 lx (lux) 40 lx (lux) 15 lx (lux) 4.5 lx (lux) 2 bulbs (20 W) 800 lx (lux) 80 lx (lux) 30 lx (lux) 9 lx (lux)
�
Abbreviation CH : Chinese model
CND : Canadian model
Mass Optional accessory Included items
3 lx (lux) 6 lx (lux) 3,000 °K Approx. 100 hours Approx. 48 � 115 � 64 mm (1 15 � 16 � 4 5 � 8 � 2 5 � 8 inches) (w/h/d) (excluding protrusions) Approx. 106 g (3.8 oz) (excluding the battery pack) (excluding the accessory shoe adaptor) XB-20DX halogen lamp Video light (HVL-20DM) (1) Accessory shoe adaptor (1) Set of printed documentation
HVL-20DMA is a general name of HVL-20DM and the accessory shoe adaptor. Design and specifications are subject to change without notice.
BATTERY VIDEO LIGHT
HVL-20DMA 9-876-786-11
2005A0500-1 © 2005.1
Sony EMCS Co.
Published by DI Technical Support Section
|
|
|
> |
|
