Home >> SONY >> HVRM10U Service Manual

 0 item(s) in your cart

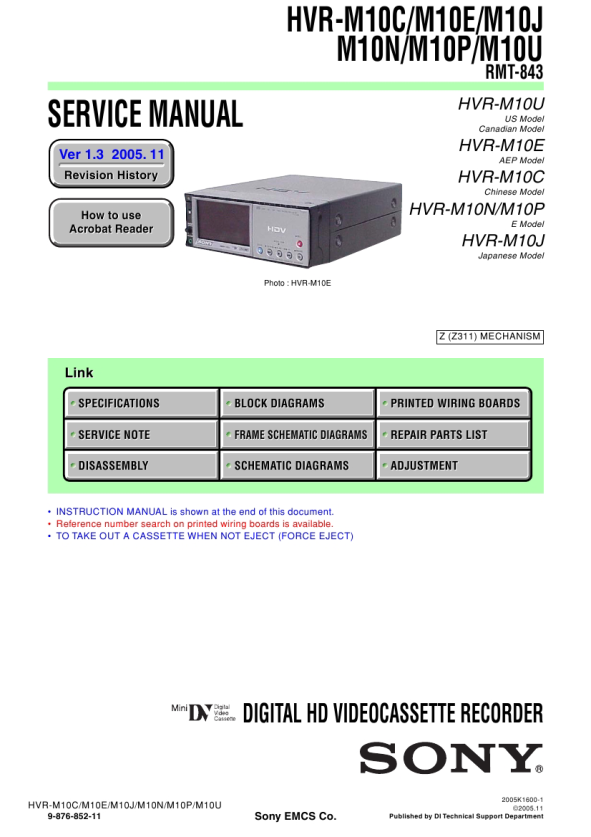

SONY HVRM10U
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of SONY HVRM10U Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 PT-L785U PANASONIC Service Manual by Edward Carlson;
Excellent manual. Helped me out with disassembling and troubleshooting my projector.
 BVM-14F5E SONY Service Manual by Argyris Tsapras;
thanks you are the best.Very good detail, Quick service response. A useful service manual with all details.
 SLPD847 TECHNICS Service Manual by Tomasz Nowicki;
Great service!!! Polecam gorąco wszystkim zainteresowanym
 AX-66BK JVC Service Manual by Timothy Hertz;
I liked the price plus it had everything i needed to service the tv. thankyou Tim Hertz
 PL-510A PIONEER Service Manual by salvatore sciuto;
The manual is excellent, well detailed, and divided into two parts. Received very quickly. Thank you.

Text excerpt from page 185 (click to view)
1-3-31. EJ Arm 1. Removal procedure 1) Remove the hook 1 of the tension coil spring (EJ arm) 3 that is hooked on the round hole A. 2) Remove the EJ arm and the tension coil spring (EJ arm) 2 all together in the direction of the arrow. 3) Remove the tension coil spring (EJ arm) 3 from the EJ arm 4. 2. Attachment procedure 1) Apply grease to the EF arm. Amount of grease: a ball of 1.0 mm diameter of grease 2) Install the tension coil spring (EJ arm) 3 into the round hole of the EJ arm 4 with the hook facing upward. 3) Insert the top tip (bent) portion B of the EJ arm 4 into the groove of the mechanical chassis. Insert the dowel C into the round hole of the EJ arm. 4) Insert he tension coil spring 1 into the round hole A of the mechanical chassis with the hook facing upward.

Points to be noted
� When installing the EJ arm, confirm the front side and rear side so that the correct side is selected. � Extension spring (EJ) must not have elongation and opening of hook.

2 EJ arm, Extension spring (EJ) 1 Remove the hook. B

The spring hook faces upward 3 Extension spring (EJ)

The spring hook faces upward

A 4 EJ arm

Groove of the mechanical chassis Dowel C

Apply Grease Points to be noted
Apply grease when installing it Amount of grease: a ball of 1.0 mm diameter of grease EJ arm

EJ arm

Extension spring (EJ)

Apply grease

HVR-M10C/M10E/M10J/M10N/M10P/M10U 6-42
