SECTION 3 DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
BATTERY CASE LID, MAIN BOARD
1 battery case lid A
Pull the battery case lid toward direction A, remove it.
2 tapping screw (B1.7)
6 switch unit
7 case block assy
5 two screws (M1.7 � 2.5)
4 MAIN board
3 upper lid block assy
�4�

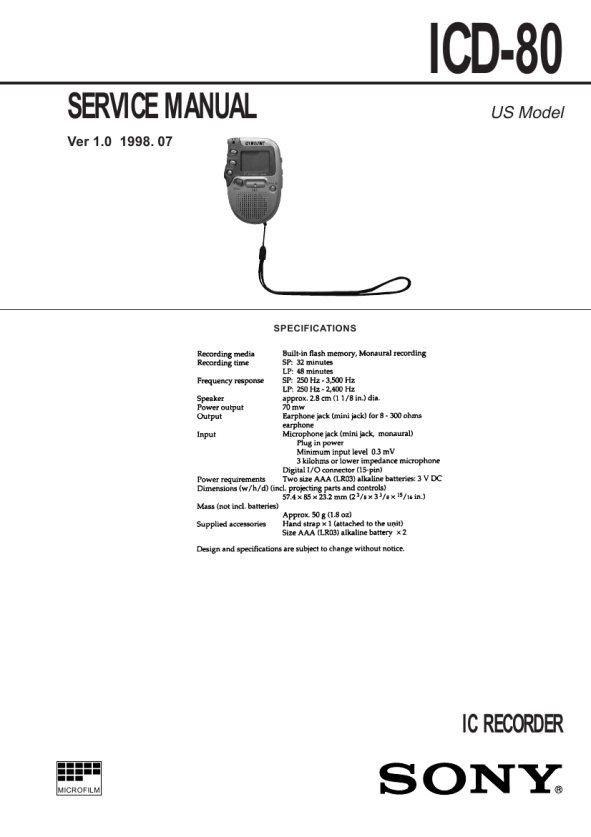

$4.99 ICD-80 SONY Owner's Manual Complete owner's manual in digital format. The manual will be available for download as PDF file aft…
|
|
|
> |
|
