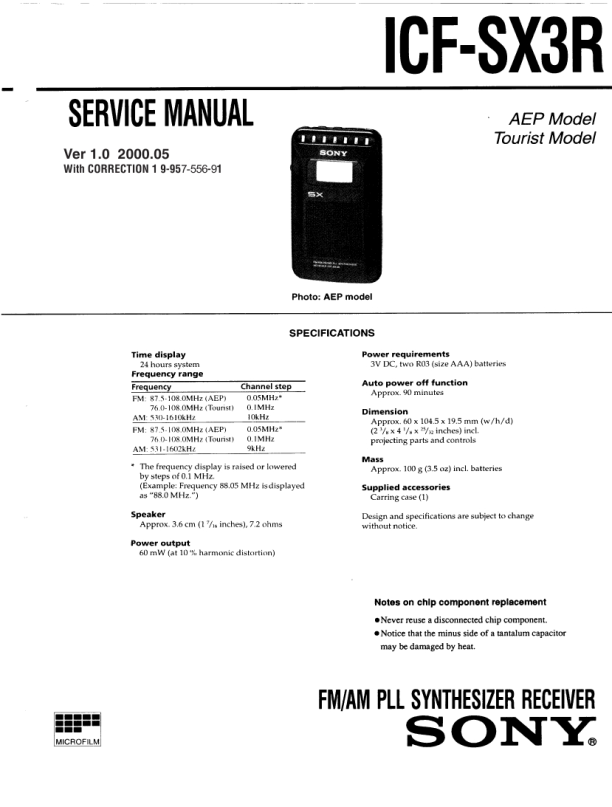

ICF-SX3R
AEP Model Tourist Model
SERVICE MANUAL
2000. 05
CORRECTION - 1
Correct your Service Manual as shown below.
page
Ref. No. 11 19 Part No.
INCORRECT
Description Part No. A-3635-818-A REEL ASSY
CORRECT
Description X-3377-998-1 REEL ASSY (INCLUDING EARPHONE)
(SPM-00018)
Sony Corporation
9-957-556-91
Audio Entertainment Group
2000E02073-1D Printed in Japan © 2000.5 Published by PE General Engineering Dept.
|
|
|
> |
|
