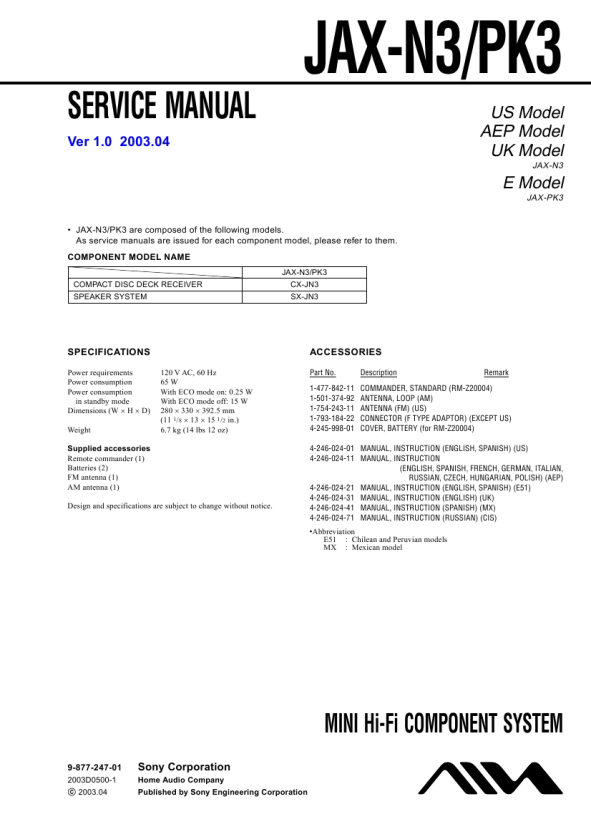

JAX-N3/PK3
SERVICE MANUAL
Ver 1.0 2003.04
US Model AEP Model UK Model
JAX-N3
E Model
JAX-PK3
� JAX-N3/PK3 are composed of the following models. As service manuals are issued for each component model, please refer to them. COMPONENT MODEL NAME
JAX-N3/PK3 COMPACT DISC DECK RECEIVER SPEAKER SYSTEM CX-JN3 SX-JN3
SPECIFICATIONS
Power requirements Power consumption Power consumption in standby mode Dimensions (W � H � D) Weight Supplied accessories Remote commander (1) Batteries (2) FM antenna (1) AM antenna (1) Design and specifications are subject to change without notice. 120 V AC, 60 Hz 65 W With ECO mode on: 0.25 W With ECO mode off: 15 W 280 � 330 � 392.5 mm (11 1/8 � 13 � 15 1/2 in.) 6.7 kg (14 lbs 12 oz)
ACCESSORIES
Part No. 1-477-842-11 1-501-374-92 1-754-243-11 1-793-184-22 4-245-998-01 Description Remark
COMMANDER, STANDARD (RM-Z20004) ANTENNA, LOOP (AM) ANTENNA (FM) (US) CONNECTOR (F TYPE ADAPTOR) (EXCEPT US) COVER, BATTERY (for RM-Z20004)
4-246-024-01 MANUAL, INSTRUCTION (ENGLISH, SPANISH) (US) 4-246-024-11 MANUAL, INSTRUCTION (ENGLISH, SPANISH, FRENCH, GERMAN, ITALIAN, RUSSIAN, CZECH, HUNGARIAN, POLISH) (AEP) 4-246-024-21 MANUAL, INSTRUCTION (ENGLISH, SPANISH) (E51) 4-246-024-31 MANUAL, INSTRUCTION (ENGLISH) (UK) 4-246-024-41 MANUAL, INSTRUCTION (SPANISH) (MX) 4-246-024-71 MANUAL, INSTRUCTION (RUSSIAN) (CIS) �Abbreviation E51 : Chilean and Peruvian models MX : Mexican model
MINI Hi-Fi COMPONENT SYSTEM
9-877-247-01
2003D0500-1 C 2003.04
Sony Corporation
Home Audio Company Published by Sony Engineering Corporation
