Dimmer
Adjusts the brightness of the display.
1 Press MODE repeatedly until �DIMMER� appears in the display when the unit is turned on and then press ENTER. 2 Turn MULTI JOG to select one of the four dimmer modes �DIMMER 0� to �DIMMER 3� and then press ENTER.
�DIMMER 0� is the brightest and �DIMMER 3� is the dimmest. If there is no MULTI JOG or button operation within 6 seconds, the setting is canceled. To cancel the dimmer Repeat the above and select �DIMMER 0� in step 2 .
Setting the clock
Use the remote.
Display mode (when off)
You can select what is displayed when the unit is off. While the unit is off, press DISPLAY repeatedly to select one of three display modes, DEMO, CLOCK or ECO, as explained below: DEMO mode You can enjoy DEMO in the display when the unit is turned off. Press DISPLAY until DEMO is displayed when the unit is turned off. Clock mode Displays the time while the unit is off. Press DISPLAY until the time is displayed when the unit is turned off. ECO mode Saves power while the unit is off. Press DISPLAY until the screen goes blank when the unit is turned off.
1 Press CLOCK/TIMER/SET.
Go to step 3 when the time appears and the �hour� flashes.
2 Press r or t repeatedly until �CLOCK� appears in the display and then press ENTER. 3 Press r or t repeatedly to set the hour and then press ENTER. 4 Press r or t repeatedly to set the minute and then press ENTER.
The time display stops flashing and the clock starts from 00 seconds. �MULTI JOG is also available in place of r or t. To display the time Press DISPLAY. The time will be displayed for 6 seconds.
En
Tip: �AM 12:00� indicates midnight and �PM 12:00� noon.
If �- -:- -� appears when the unit is turned off There has been a power interruption. Re-set the clock.
11

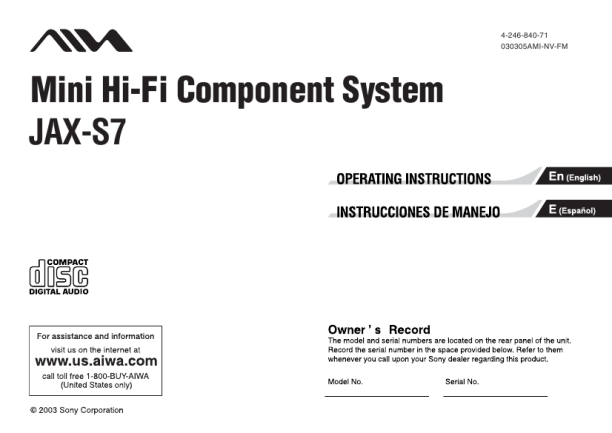

 $4.99 JAXS7 AIWA
Service Manual Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagr…
|
|
|
> |
|
|
