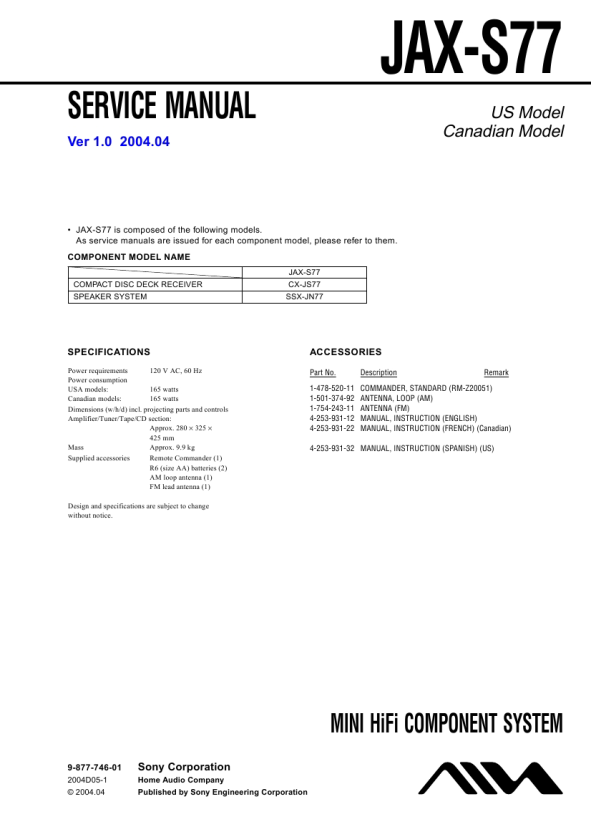

JAX-S77
SERVICE MANUAL
Ver 1.0 2004.04
US Model Canadian Model
� JAX-S77 is composed of the following models. As service manuals are issued for each component model, please refer to them. COMPONENT MODEL NAME
JAX-S77 COMPACT DISC DECK RECEIVER SPEAKER SYSTEM CX-JS77 SSX-JN77
SPECIFICATIONS
Power requirements 120 V AC, 60 Hz Power consumption USA models: 165 watts Canadian models: 165 watts Dimensions (w/h/d) incl. projecting parts and controls Amplifier/Tuner/Tape/CD section: Approx. 280 � 325 � 425 mm Mass Approx. 9.9 kg Supplied accessories Remote Commander (1) R6 (size AA) batteries (2) AM loop antenna (1) FM lead antenna (1) Design and specifications are subject to change without notice.
ACCESSORIES
Part No. 1-478-520-11 1-501-374-92 1-754-243-11 4-253-931-12 4-253-931-22 Description Remark
COMMANDER, STANDARD (RM-Z20051) ANTENNA, LOOP (AM) ANTENNA (FM) MANUAL, INSTRUCTION (ENGLISH) MANUAL, INSTRUCTION (FRENCH) (Canadian)
4-253-931-32 MANUAL, INSTRUCTION (SPANISH) (US)
MINI HiFi COMPONENT SYSTEM
9-877-746-01
2004D05-1 © 2004.04
Sony Corporation
Home Audio Company Published by Sony Engineering Corporation
|
|
|
> |
|
