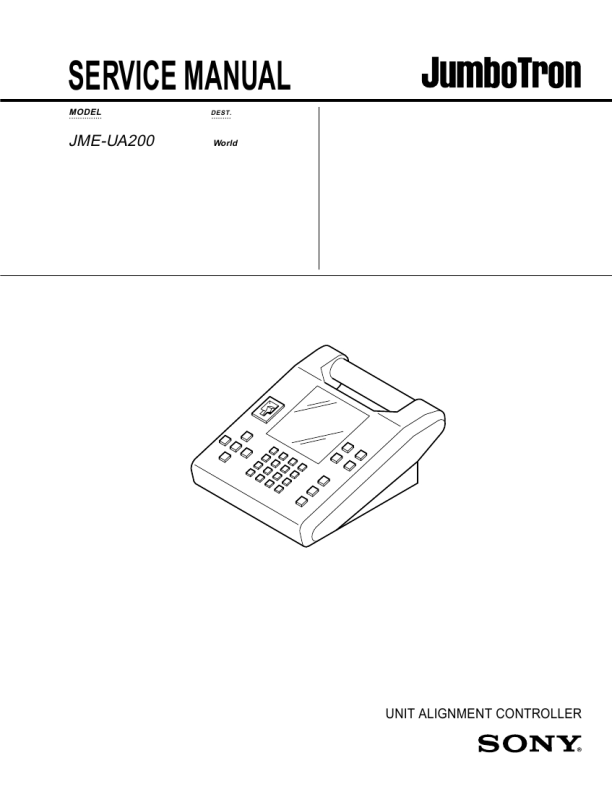

1-10 (E) JME-UA200
Adjusting the Luminance Manually
2 3
Press the � or � button to select the type of the JumboTron display unit you are using, then press the ENTER button. Press the ADJUST button.
ADJUST MENU MANUAL SENSOR
2 Selecting the target of luminance adjustment and setting the unit to the proper brightness level for carrying out the adjustment
You can adjust the luminance of the whole unit or a specified cell or pixel. If necessary, you can set the luminance or brightness of the whole unit to the level at which you can easily make the adjustments. If not necessary to set, skip steps 8 and 9 below.
6
UNIT TYPE:JTU-35
Press the SETUP button.
ADJUST Set Up
4
Select MANUAL with the � or � button, and press the ENTER button. The controller enters manual adjustment mode.
MANUAL ADJUST
ADJ:PWM-WHITE Target:UNIT Luminance:07F Brightness:07
Target of adjustment Luminance Brightness
UNIT
TYPE:JTU-35
ADJ:PWM-WHITE Target:UNIT Luminance:07F Brightness:07
Manual adjustment mode
7
To change the target of adjustment, select �Target� with the � or � button, then press the � or ı button to change. The display changes in the order of UNIT, CELL and PIXEL each time you press the � button. (It changes in the reverse order each time you press the ı button.) When you select G1-VOLTAGE or REF-VOLTAGE in the procedure 1 , PIXEL does not appear. Example: Selecting the cell for the target of adjustment
ADJUST Set Up
UNIT
TYPE:JTU-35
5
Select the manual adjustment mode with the � or ı button, or the 0 to A numberic buttons. The mode changes in the following order each time you press the � button. (Pressing ı button changes the mode in the reverse order.) You can also select the mode by pressing the button in brackets. When you select the mode marked with an asterisk (*), use the buttons in brackets.
ADJ:PWM-WHITE Target:CELL Luminance:07F Brightness:07
JTU-35
PWM-White [0] PWM-Blue [1] PWM-Red [2] PWM-Red (R) [6] PWM-Green [3] G1-VOLTAGE [4]
8
PWM-Green (G) [7]
PWM-Blue (B) [5]
To change the luminance or brightness of the whole unit, select �Luminance� or �Brightness� with the � or � button, then change the data with the � or ı button, or the numeric buttons. The adjustable range is 256 levels from 000 to 0FF for luminance, and 16 levelss from 00 to 0F for brightness. The level increases by 1 when you press the � button and decreases by 1 when you press the ı button. You can also select the level by pressing the numeric buttons that correspond to its level (for exampe, to set it to 07F, press 0, 7 then F). Example: Setting the brightness to 0A
ADJUST Set Up
* G1-VOLTAGE (G) [8], * G1-VOLTAGE (R) [9], * G1-VOLTAGE (B) [A]
JTU-17
G1V-White [0] G1V-Blue [1] G1V-Red [2] G1V-Green [3] REF-VOLTAGE [4]
G1V-Green (G) [7]
G1V-Red (R) [6]
G1V-Blue (B) [5]
* REF-VOLTAGE (B) [8], * REF-VOLTAGE (R) [9], * REF-VOLTAGE (G) [A]
LDU-15
If-White [0] If-Blue [1] If-Red [2] If-Green [3] If-Range [4] If-Blue (B) [5]
If-Green (G) [7]
If-Red (R) [6]
* If-Range (B) [8], * If-Range (R) [9], * If-Range (G) [A]
ADJ:PWM-WHITE Target:CELL Luminance:07F Brightness: OA
(Continued)
