13Attach the sensor (not supplied) to the target cell and press the ENTER
button. The luminance is automatically measured.
JumboTron display unit JME-UA200
Sensor
After the adjustment is complete, the display changes as follows:
During adjustment
SENSOR ADJUST Now
After adjustment
SENSOR Adjust ADJUST END
Adjusting
LUM:3FF(FIX) BRT:007(FIX) H:04 V:04
LUM:3FF(FIX) BRT:007(FIX) H:04 Write V:04 Now
UNIT
TYPE:LDU-15
UNIT
TYPE:LDU-15
Adjust Result Cell H:04 V:04 1 2 3 4 BRG BRG BRG BRG 1000 000 000 000 2000 3000 4000 000 000 000 000 000 000 000 000 000
The unit writes the data into the memory after �Adjust END� appears, then displays the measured data in the display window about 10 seconds later.
14Press the ENTER button.
The SENSOR ADJUST menu is restored.
SENSOR ADJUST
Measure Adjust Quit
4 Finishing the adjustment
15Select �Quit� from the SENSOR ADJUST menu with the � or �
button, and press the ENTER button. If adjustment fails Try to repeat from step 9 to make adjustment again. Should �Adjust NG� still appear, adjustment failure may be caused by the light-emitting limits of the cell. Check the revised light emission data using �Revise Data menu.� (See page 34.) If the revision value is at its maximum limit, you cannot make the adjustment.

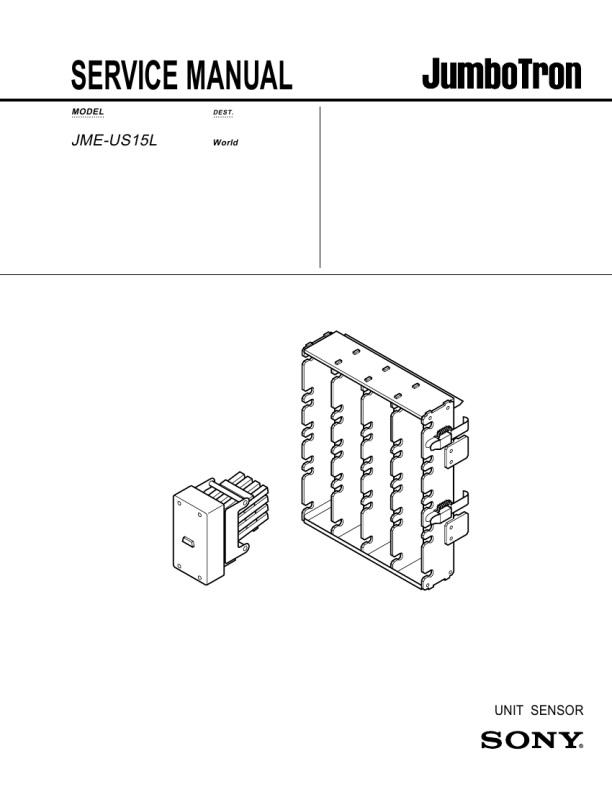

1-5(E) JME-US15L
27
|
|
|
> |
|
