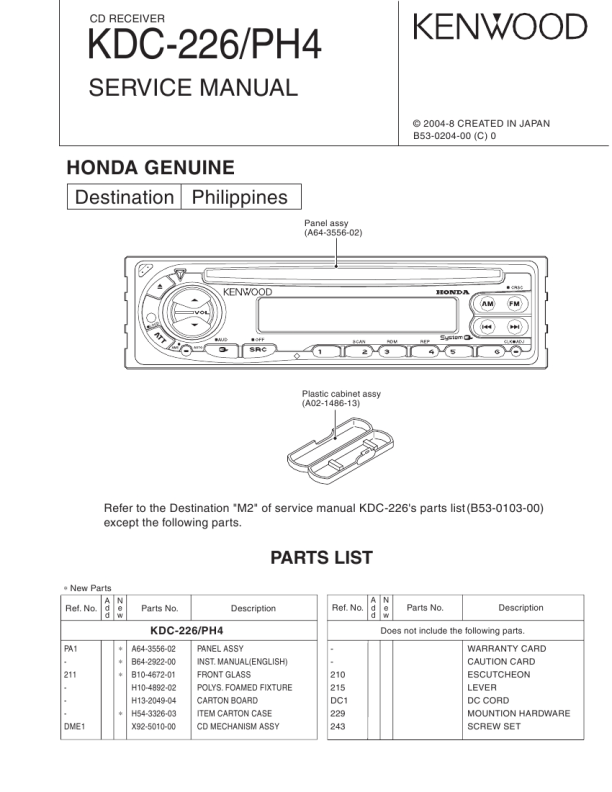

CD RECEIVER
KDC-226/PH4
SERVICE MANUAL
© 2004-8 CREATED IN JAPAN B53-0204-00 (C) 0
HONDA GENUINE Destination Philippines
Panel assy (A64-3556-02)
Plastic cabinet assy (A02-1486-13)
Refer to the Destination "M2" of service manual KDC-226's parts list (B53-0103-00) except the following parts.
PARTS LIST
� New Parts Ref. No. d e
AN dw
Parts No.
Description
Ref. No. d e
AN dw
Parts No.
Description
KDC-226/PH4
PA1 211 DME1 � A64-3556-02 � B64-2922-00 � B10-4672-01 H10-4892-02 H13-2049-04 � H54-3326-03 X92-5010-00 PANEL ASSY INST. MANUAL(ENGLISH) FRONT GLASS POLYS. FOAMED FIXTURE CARTON BOARD ITEM CARTON CASE CD MECHANISM ASSY 210 215 DC1 229 243
Does not include the following parts. WARRANTY CARD CAUTION CARD ESCUTCHEON LEVER DC CORD MOUNTION HARDWARE SCREW SET
|
|
|
> |
|
