KDL-V26XBR1/V32XBR1 2-1-4. H6 BOARD REMOVAL
2 H6 board 3 Multi botton 1 Multi botton bracket
2-1-5. H8 BOARD REMOVAL (Illustration are created based on KDL-V26XBR1)
5 Coaxial cable with F-plug 9 Antenna switche RFD-SA811 6 Two screws (+PSW 3x8) 7 RF bracket (26B-DIG) 8 Nut with washer 4 RF cable
KDL-V32XBR1
1 Two screws (+PSW 3x8) 9 Antenna switche RFD-SA811 5 Coaxial cable with F-plug 6 Two screws (+BVST 3x8) 3 H8 board 4 RF cable
2 Side terminal holder 7 RF bracket (32B-DIG) 8 Nut with washer

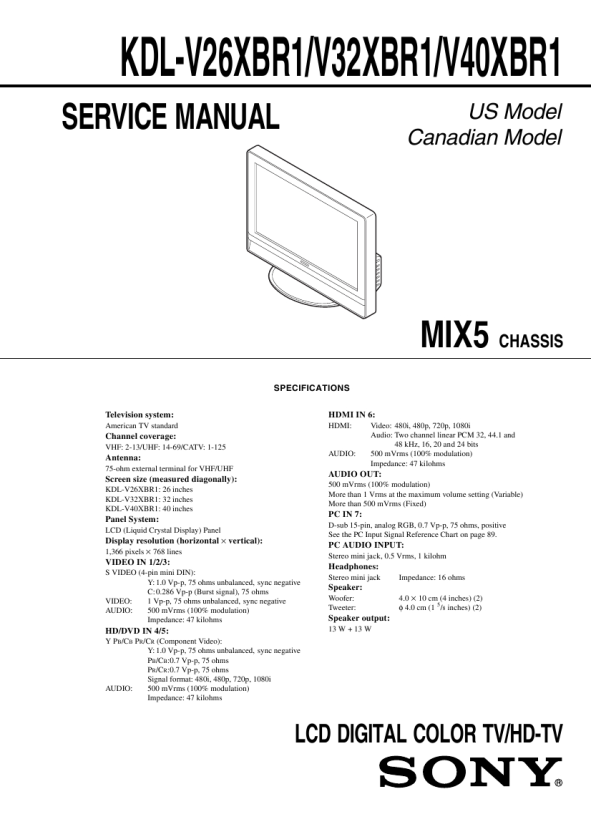

KDL-V26/V32/V40XBR1 (UC)
2-3
|
|
|
> |
|
