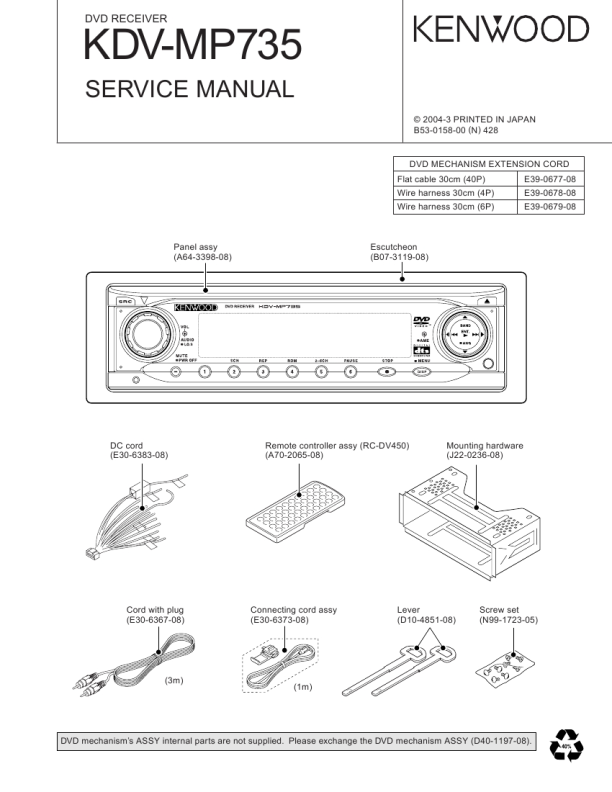

KDV-MP735
DISASSEMBLY FOR REPAIR
1) Remove a screw (A). 2) Remove the panel section by sliding it downward.
A
3) Remove four screws (B). 4) Separate the rear panel by applying force in the inside edge (D).
F
FRONT PANEL (C)
B B B B REAR PANEL (D)
The front panel (C) and the rear panel (D) are fixed on 6 points as indicated by the arrows in the figure. It is easy to separate front and rear panels by starting from the (F) section.
REAR PANEL (D)
FRONT PANEL (C)
3
|
