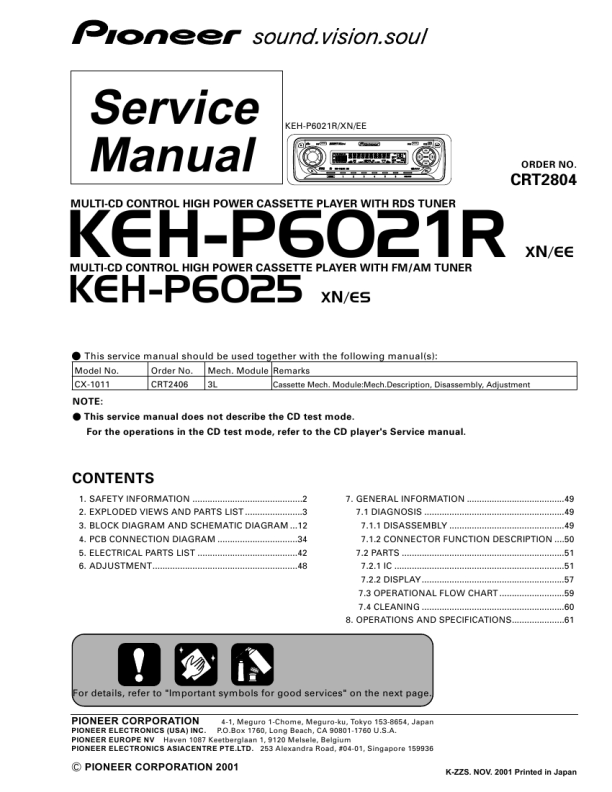

Text excerpt from page 49 (click to view)
KEH-P6021R,P6025
7. GENERAL INFORMATION
7.1 DIAGNOSIS 7.1.1 DISASSEMBLY
- Removing the Case (not shown) 1. Remove the Case. - Removing the Cassette Mechanism Module (Fig.1) Remove the four screws and then remove the Cassette Mechanism Module. - Removing the Panel Assy (Fig.1) Remove the two screws and then remove the Panel Assy.
Cassette Mechanism Module
Panel Assy
Fig.1
- Removing the Tuner Amp Unit (Fig.2) Remove the two screws. Straight the tabs at three locations indicated. Remove the screw. Remove the three screws and then remove the Tuner Amp Unit.
