MACKIE HR824 26 pages English-only Service Manual contains:
1) HR824 technical overview with the description of front and rear panel switches.
2) HR824 specs
3) Block Diagram
4) Wiring Diagram
5) Packaging management
6) Spare part & final assembly list (for PCB rev A and B) + exploded view
7) Test Procedures (where, how to measure voltage...) including Test Point diagram on the PCB.
8) IC and Transistor charts.
Excellent guide: very clear, good scan quality enabling us to print readable diagram :-)
Note:
Mackie HR824 make extensive use of surface mount devices (SMD). Service on the HR824 must
only be undertaken by experienced service technicians with the right tools, experience and patience to perform surface mount rework when needed.
;
This Service manual is very well scanned and its clean to read, no any anti-theft words that un-english could understand. I got my CCD600 working with this manual and it´s clear shematics :)
;
I was very pleased with the service provided and was surprised at how good the quality was of the manual. I thought it may be a third generation copy or so, but it is as good as the websites that charge 3 times this much. I repair some electronics for family and friends without charge, so this is perfect for me. Thank you very much.
;
The service was great and the document was also great. Highly recommend!!!!
If anyone has a users manual... Please email me. need one. $ [email protected]
;
I needed a service manual as the display on my oscilloscope was very dim. I thought I'd give owner-manuals.com a try, as they advertised a huge number of manuals. Sure enough they had one listed. I bought it hoping it would be useful... actually, I bought it hoping it would be readable! I've had manuals from online sources in the past, and been very disappointed. Not this time! An excellent manual, complete, and very readable. Using it I fixed my 'scope, and as such the manual was an investment that paid off manyfold. Do I have any complaints? One very minor one - The circuit diagrams could have been scanned at a higher resolution, as some of the details were a little difficult to make out - not impossible, just not as easy as my old eyes would like! Overall, I'm very satisfied with my manual, and I will certainly be using this company again. Well done.

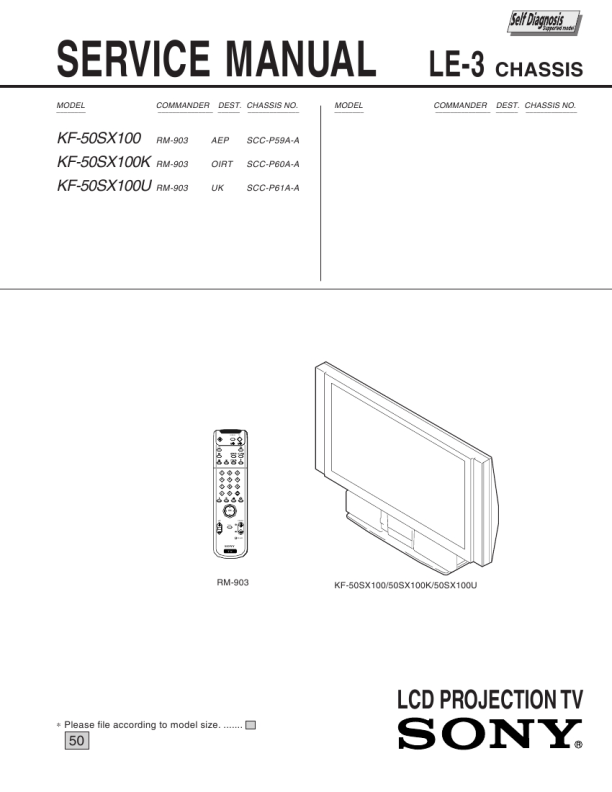

KF-50SX100/50SX100K/50SX100U
RM-903 RM-903 RM-903
3-4. RGB OUTPUT LEVEL ADJUSTMENT
1. Input the colour bar signal (100% white) to AV4 and select AV4. 2. Setting MCP 26 MCP 33 MCP 34 Gamma DPIC-Level DC-Tran 0 0 0
3. R adjustment 1) Set �D9512 TPN 8 T-PATN RGB� to 1. 2) Adjust by changing data of �LCD-DR 3 R EVEN VR� to the vertical stripe (brightness difference every two dots) to minimum. 3) Write the data into memory. 4. G adjustment 1) Set �D9512 TPN 8 T-PATN RGB� to 2. 2) Adjust by changing data of �LCD-DR 8 G EVEN VR� to the vertical stripe (brightness difference every two dots) to minimum. 3) Write the data into memory. 3. B adjustment 1) Set �D9512 TPN 8 T-PATN RGB� to 4. 2) Adjust by changing data of �LCD-DR 3 B EVEN VR� to the vertical stripe (brightness difference every two dots) to minimum. 3) Write the data into memory.
3. Connect an oscilloscope to pin 5 (R), pin 3 (G) or pin 1 (B) of CN702 on BB board. 4. Initialising b Feature setting 6 Pict Boost Bypass ON 5. Adjust drive; A and cutoff; B by changing data of followings as shown in the figure. MCP 7 MCP 9 MCP 10 MCP 11 R-Drive G-Drive B-Drive R-Cutoff
MCP 12 G-Cutoff MCP 13 B-Cutoff 6. Write the data into memory. CN702:5 (R) A : 1.4 ± 0.025Vp-p B : 2.275 ± 0.025Vp-p CN702:3 (G) A : 1.4 ± 0.025Vp-p B : 2.275 ± 0.025Vp-p CN702:1 (B) A : 1.4 ± 0.025Vp-p B : 2.275 ± 0.025Vp-p
Screen magnify Should be minimize bright difference every two dots.
Fig. 3-3
3-6. SUB BRIGHT ADJUSTMENT
1. Receive the monoscope signal. 2. Mode PICTURE Personal
Fig. 3-2
SCREEN SIZE Full 3. Adjust by changing data of �D9512 IM 3 SUB BRT� so that the border between 0 IRE and 10 IRE becomes distinct. 4. Write the data into memory.
3-5. VERTICAL STRIPE ADJUSTMENT
1. Setting D9512 TES 2 G-LUT SW 0 D9512 TPN 0 T-PATN SW 1 D9512 TPN 1 T-SIG SEL 0 D9512 TPN 2 PATN DIR 1 D9512 TPN 3 SIG LV DIR 0 D9512 TPN 5 B-LV 15 D9512 TPN 6 G-LV 15 D9512 TPN 7 R-LV 15 2. Check the middle luminance of mono flat field on the screen.
3-7. SCREEN CENTER ADJUSTMENT
3-7-1. Horlzontal center adjustment 50Hz : PAL SPCB 60Hz : PAP (PAL SPCB for main and sub) 1) Adjust H center by changing data of "IP00C741A 1.OACTHST-L". 3-7-2. Vertical center adjustment 50Hz : PAL SPCB 60Hz : INDEX (1) 50Hz adjustment Input PAL SPCB and adjust V center by changing data of "IP00C741A 3. SYRDLY".
