Home >> SONY >> KLV-21SR2 Service Manual

 0 item(s) in your cart

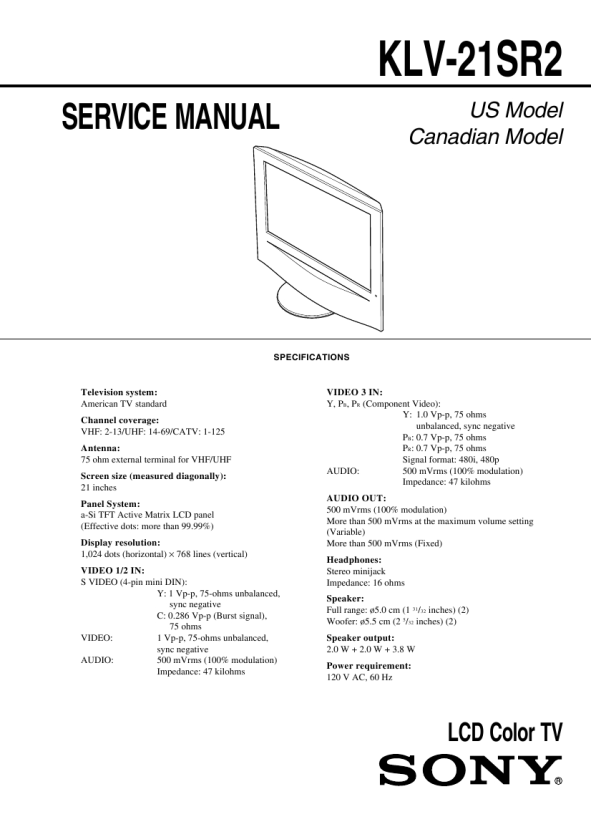

SONY KLV-21SR2
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of SONY KLV-21SR2 Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 PT-51SX60A PANASONIC Service Manual by Kenneth Nawalkowski;
I found this service manual to be complete in every detail except for troubleshooting charts. It would be helpful if it had a set of troubleshooting charts; however it is a very good manual otherwise and for the price it is very well worth it.
 AS645 PHILIPS Service Manual by neil stock;
Complete manual included schematics layouts and alignment procedure, clear to read and magnify, extremely pleased with manual and owner manual . com's service
 R-5L SANSUI Service Manual by MAZUIR Georges;
perfect, i am very satisfait for the rΓ©ception of the sansui r-5l service manual, thank you very much
 KAC887 KENWOOD Service Manual by Vasile Ceteras;
Thank you, this is a rare document. Few others have it, but they charge way more for a download. Great deal (even if you have to wait a few hours to get it).
 04LC1000/05R/08R PHILIPS Service Manual by Nils Thei;
The purchased manual is an high quality scan of the original Philips paper-based Service Manual. I am very satisfied!

Text excerpt from page 12 (click to view)
2-1-4. Y signal AD calibration of COMPONENT input.
1. Check “CP_CTRL” = 0 2. Set data as follows. <Setting data> COLOR DYNA_PICT DC_TRAN 25 0 (OFF) 0 (OFF)

8. Check that the detection value of “PW_INPUT_CB” is within the standard of the following column. <Video 3 input standard value on blue full field> Item PW_INPUT_CB Standard 230 ± 2

9. Input red full field with burst. 10. Send “READ_PW_INPUT_CR” command from ECS. 11. Check that the detection value of “PW_INPUT_CR” is within the standard of the following column. <Video 3 input standard value on blue full field> Item Standard PW_INPUT_CR 230 ± 3

3. Input 0 IRE black full field with burst in video 3 input . 4. Send “READ_PW_INPUT_Y” command from ECS. 5. Check thgat the detection value of “PW_INPUT_Y” is within the standard of the following column. <Video 3 input detection value average on 0 IRE black full field> Item PW_INPUT_Y Standard 11 ± 3

2-2. White Balance Adjustment
2-2-1. White Balance of color temperature “cool”
1. After setting PICTURE_MODE=2(Pro) set data as follows. <Confirmation of setting data> Save system Picture Save Item PICTURE =100 (Max) BRIGHTNESS=50 (Center) COLOR_INDEX=1 (“High”) DYNA_PICT=0 DC_TRAN=0 U_BACKLIGHT=10 (Max) ECO_MODE=1 (Standard) R_DRIVE=125 G_DRIVE=128 B_DRIVE=140 R_BKG=132 G_BKG=128 B_BKG=131

6. Input 100 IRE white full field with burst. 7. Send “ADJUST_Y_LEVEL_D1” command from ECS. The Y_LEVEL_CCP2_04 registration of the D1 range is adjusted automatic by this command. Adjustment value also is copied in the D2, D3 and D4 range. 8. Check that the detection value of “PW_INPUT_Y” is within the standard of the following column. <Video 3 input detection value average on 100 IRE white full field> Item PW_INPUT_Y Standard 195 ± 2

Default Save Color Save

2-1-5. C signal AD calibration of COMPONENT input.
1. Check “CP_CTRL” = 0 2. Set data as follows. <Setting data> COLOR DYNA_PICT DC_TRAN 25 0 (OFF) 0 (OFF)

2. Input 70 IRE gray full field signal in video 1 input . 3. Adjust R_DRIVE, B_DRIVE until high light adjustment value. <high light adjustment value (9000K)>

3. Input 0 IRE black full field with burst in video 3 input . 4. Send “READ_PW_INPUT_CB” command from ECS. 5. Check thgat the detection value of “PW_INPUT_CB” is within the standard of the following column. <Video(composit) input detection value average on 0 IRE black full field> Item PW_INPUT_CB Standard 128 ± 5

x y Y

KLV-21SR2 0.279 0.286 –

range 0.7JND 0.7JND N/A

4. Input 20 IRE gray full field signal in video 1 input . 5. Adjust R_BKG, B_BKG until low light adjustment value. <back ground adjustment value > x y Y KLV-21SR2 0.275 0.272 – range 0.9JND 0.9JND N/A

6. Input blue full field with burst. 7. Send “ADJUST_C_LEVEL_D1” command from ECS. The C_LEVEL_CCP2_05 registration of the D1 range is adjusted automatic by this command. The value that increased and redused offset data is copied in the D2, D3 and D4 range.

6. Repeat step 1-4 until it is high and low light adjustment value. 7. Do “Color Save”

KLV-21SR2 (UC)

2-2
