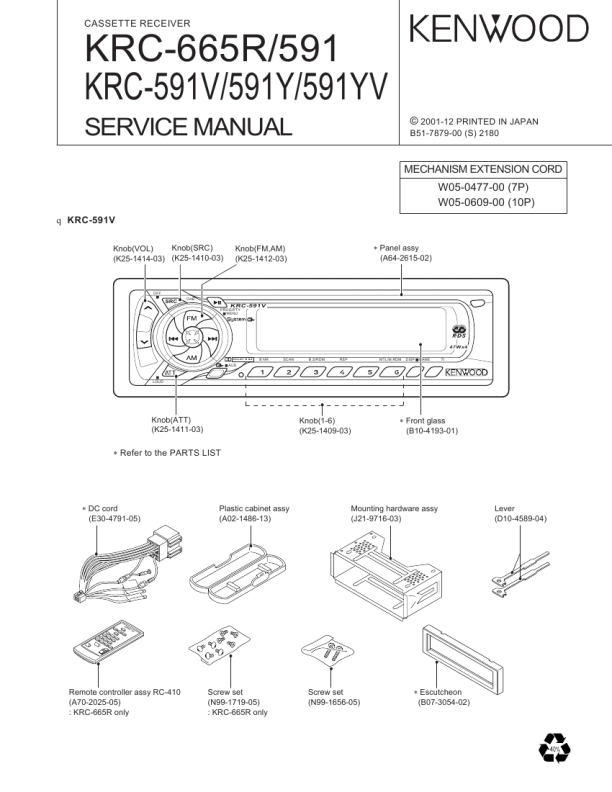

KRC-665R/591/591V/591Y/591YV
ADJUSTMENT
BALANCE/FADER/BASS/MID/TREBLE : CENTER T.ADV/METAL/DOLBY NR : OFF No. ITEM INPUT SETTINGS TCC-153 10kHz OUTPUT SETTINGS SP OUT Connect an AC voltmeter to CN5 (X14-). ALIGNMENT POINTS Head azimuth screw (FWD/REV) VR1 (L) VR2 (R) ALIGN FOR Adjust so that output level in playing FWD and REV becomes maximum each. 388mV FIG.
1
AZIMUTH
(b)
2
DOLBY (PLAY BACK LEVEL)
TCC-130
(a)
L G R (a) DOLBY
CN5
VR1 L
F/E
VR2 R PANEL FRONT
(b) AZIMUTH
FWD
REV
PANEL FRONT
8
|
