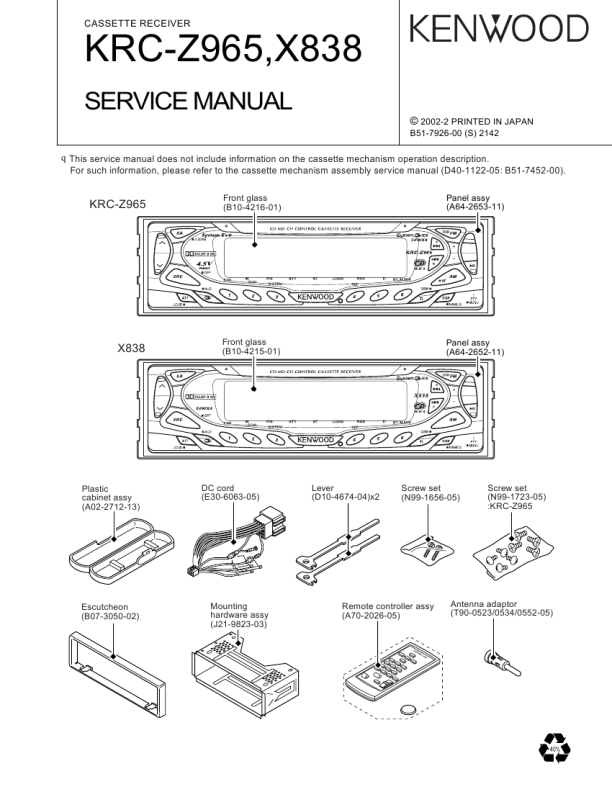

KRC-Z965,X838
TEST MODE
turns on 2zone. Cancel by pressing the TI (AUTO) key again. The P/S dot is lit during 2zone. � In the case of 2 PREOUT model with Non Fader output, Each pressing and holding the ATT key for 1 second or more during All OFF, Non Fader output is switching Rear output or Non Fader output. � In the case of 2 colors key illumination model, Each press the ATT key during All OFF, the key illumination is switching Green or Red.
s Security-related information
1. Forced Power ON mode (All models)
Even when the security (Cord) is approved, resetting the unit while holding the ATT and Preset 4 keys makes it possible to turn the power ON for 30 minutes. After 30 minutes have elapsed, it is not possible to return to the previous condition unless the unit is reset again.
2. Method of registration of the security code after EEPROM (Tuner Unit Ass'y) replacement (Code security model)
1. Enter the test mode. (See 1. How to enter the test mode) 2. Press the PLAY/PAUSE key to enter the Menu mode. 3. When the message "Security" is displayed, press and hold the Track Up/Down key for 1 second to enter the security registration mode. 4. Enter the code using the FM/AM/Track Up/Track Down keys. � FM key : Number up � AM key : Number down � Track Up key : Cursor right shift � Track Down key : Cursor left shift 5. Hold down the Track Up key for at least 3 seconds and the message, "RE-ENTER" appears, so once again enter the code according to Step 4 above. 6. Press and hold the Track Up key for 3 seconds until "APPROVED" is displayed. 7. Exit from the test mode. (See 2. How to exit from the test mode) (Note) All Clear is not applicable to the security code of this model.
