KENWOOD KS-908HT
Service Manual

Tweet about this product and get $1.00 of store credit for instant use!

Contains Circuit Diagrams
Download
PDF Format
Complete manual
Language: English

Price: $4.99

Description of KENWOOD KS-908HT Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Tell a Friend

You must purchase it first

Write Review

Customer Reviews

There are currently no product reviews.

Other Reviews

M63 FUTURA NORDMENDE Service Manual by Matteo Vannini;

Great manual very clear copied. You are making an incredible job. I appreciate a lot the rapidity and your efficiency. Thanks a lot

DMRE85HP PANASONIC Service Manual by David Golden;

Good pdf of the service manual for this unit. Includes disassembly instructions, full schematics, board layouts, parts lists and diagnostic information. Some information is in the pdf twice (single pages, and split pages), but that could be how it was originally generated by panasonic, or perhaps the idea is to make it eaiser to put onto 8.5 x 11" pages. Information was exactly what I needed. Delivery was overnight (less than 12 hours) and I was happy with the process.

27NS100 SHARP Service Manual by HAIMCHAND PERSAUD;

5 STARS for FAST DELIVERY, BEST PRICES and QUALITY PRODUCT. Item was exactly as described with superb resolution. Will definitely source all my future requirements from this website. Thanks a lot owner-manual.com!

DT-555 PIONEER Service Manual by Roger Sellers;

OEM manual provided all schematics, board layouts and component specs necessary to facilitate unit maintenance. All pages were clear and readable.

700M KENWOOD Service Manual by Maxim Voronin;

Good condition and quality. Hard to find anywhere in Internet, only on this site.

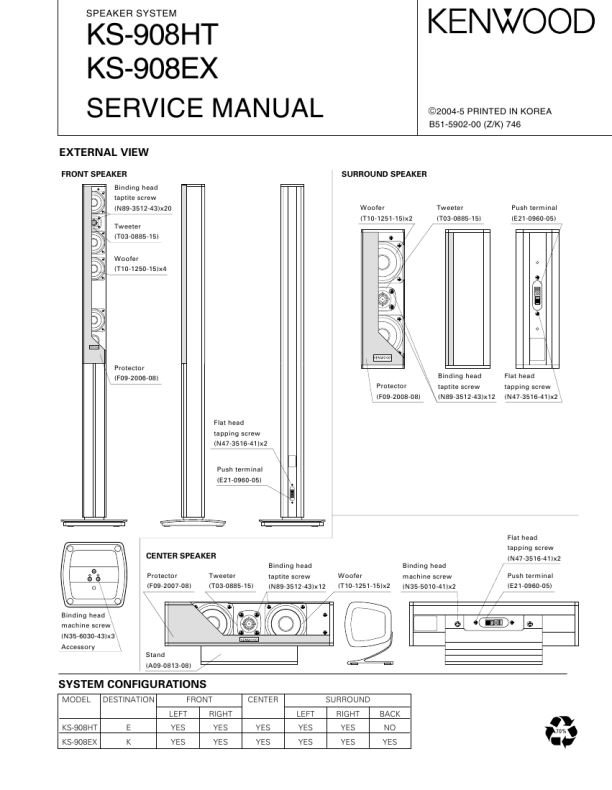

Text excerpt from page 1 (click to view)

SPEAKER SYSTEM

KS-908HT KS-908EX
SERVICE MANUAL
EXTERNAL VIEW
FRONT SPEAKER
Binding head taptite screw (N89-3512-43)x20 Tweeter (T03-0885-15) Woofer (T10-1250-15)x4 Woofer (T10-1251-15)x2 Tweeter (T03-0885-15) Push terminal (E21-0960-05)

ï£©2004-5 PRINTED IN KOREA
B51-5902-00 (Z/K) 746

SURROUND SPEAKER

Protector (F09-2006-08) Protector (F09-2008-08)

Binding head taptite screw (N89-3512-43)x12

Flat head tapping screw (N47-3516-41)x2

Flat head tapping screw (N47-3516-41)x2

Push terminal (E21-0960-05)

CENTER SPEAKER
Protector (F09-2007-08) Tweeter (T03-0885-15) Binding head taptite screw (N89-3512-43)x12 Woofer (T10-1251-15)x2 Binding head machine screw (N35-5010-41)x2

Flat head tapping screw (N47-3516-41)x2 Push terminal (E21-0960-05)

Binding head machine screw (N35-6030-43)x3 Accessory Stand (A09-0813-08)

SYSTEM CONFIGURATIONS
MODEL DESTINATION FRONT LEFT KS-908HT KS-908EX E K YES YES RIGHT YES YES YES YES CENTER LEFT YES YES SURROUND RIGHT YES YES BACK NO YES
