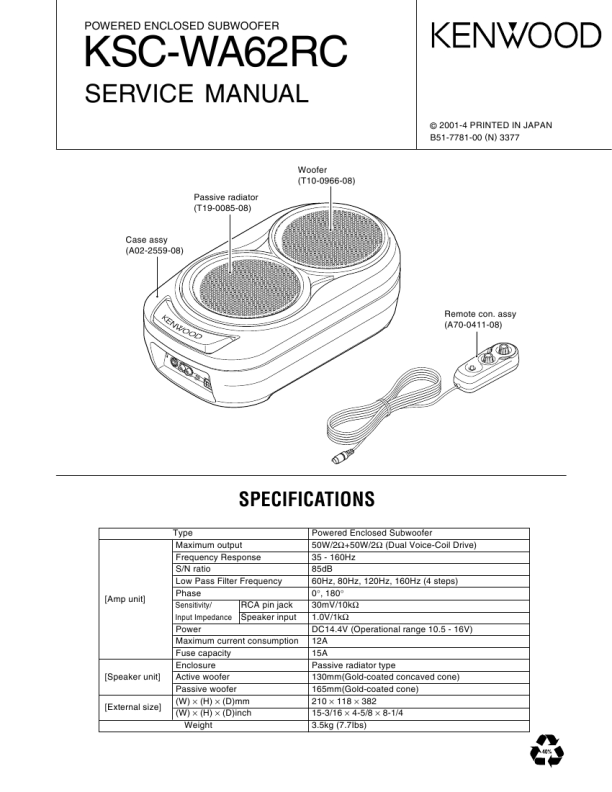

POWERED ENCLOSED SUBWOOFER
KSC-WA62RC
SERVICE MANUAL
© 2001-4 PRINTED IN JAPAN B51-7781-00 (N) 3377 Woofer (T10-0966-08) Passive radiator (T19-0085-08)
Case assy (A02-2559-08)
Remote con. assy (A70-0411-08)
SPECIFICATIONS
Type Maximum output Frequency Response S/N ratio Low Pass Filter Frequency Phase Sensitivity/ RCA pin jack Input Impedance Speaker input Power Maximum current consumption Fuse capacity Enclosure Active woofer Passive woofer (W) � (H) � (D)mm (W) � (H) � (D)inch Weight Powered Enclosed Subwoofer 50W/2�+50W/2� (Dual Voice-Coil Drive) 35 - 160Hz 85dB 60Hz, 80Hz, 120Hz, 160Hz (4 steps) 0°, 180° 30mV/10k� 1.0V/1k� DC14.4V (Operational range 10.5 - 16V) 12A 15A Passive radiator type 130mm(Gold-coated concaved cone) 165mm(Gold-coated cone) 210 � 118 � 382 15-3/16 � 4-5/8 � 8-1/4 3.5kg (7.7Ibs)
[Amp unit]
[Speaker unit] [External size]
|
|
|
> |
|
