Notes � If you connect a monaural VCR, connect the yellow plug to (the yellow jack) and the black plug to -L (MONO) (the white jack). � If you connect a VCR to the 8 (antenna) terminal, preset the signal output from the VCR to the program number 0 on the TV. � Do not connect video equipment to the t 2 (video input) jacks at the front and the rear of your TV at the same time; otherwise the picture will not be displayed properly on the screen. � When no signal is input from the connected video equipment, the TV screen becomes blue. CAUTION � Do not connect the power cord until you have completed making all other connections; otherwise a minimum leakage current might flow through the antenna and other terminals to ground. � To avoid battery leakage and damage to the remote, remove the batteries from the remote if you are not going to use it for several days. If any liquid that leaks from the batteries touches you, immediately wash it away with water.
Connecting optional components
You can connect optional audio/video components, such as a VCR, multi disc player, camcorder, video game or stereo system. To watch the video input of the connected equipment, press t (see page 12).
Connecting a camcorder/video game equipment using the t (video input) jacks
Front of TV Audio/Video cable (not supplied)
To t 2 (video input) To video and audio outputs
Camcorder
or
2
Video game equipment
Step 2
(MONO)
Insert the batteries into the remote
: Signal flow
� 9 �
Note � Do not use old batteries nor use different types of batteries together.
Notes � You can also connect video equipment to the t 1 or 2 (video input) jacks at the rear of your TV. � Do not connect video equipment to the t 2 (video input) jacks at the front and the rear of your TV at the same time; otherwise the picture will not be displayed properly on the screen.
Step 3
Preset the channels automatically
Front of TV
Using Your New TV
Connecting audio/video equipment using the T (monitor output) jacks
Rear of TV Antenna cable (not supplied) To antenna output
1 2
PR OGR
Audio system
1
To T (monitor output)
1
VCR
or
To audio inputs

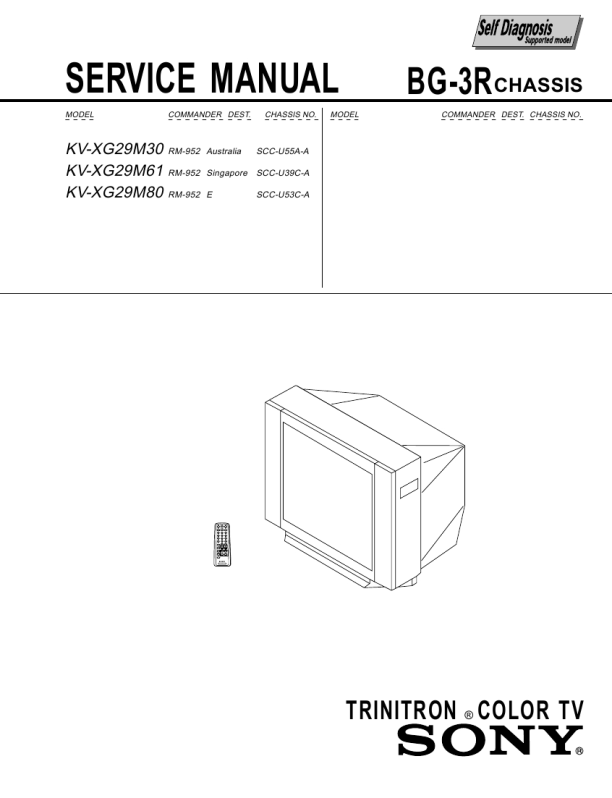

KV-XG29M30/XG29M61/XG29M80
To video and audio inputs
AUTO PROGR
VHF LOW AUTO
Tips � If you want to stop automatic channel presetting, press SELECT twice. � If your TV has preset an unwanted channel or cannot preset a particular channel, then preset your TV manually (see page 9). Note (KV-XG29M80 only) � During automatic channel presetting, your TV screen will indicate �B/G� , �I�, �D/K� or �M� for the TV system. Using Your New TV
(yellow) -L (MONO) (white) -R (red)
Audio/Video cable (not supplied) : Signal flow
Note � When connecting a monaural VCR, connect the yellow plug to yellow jack) and the black plug to -L (MONO) (the white jack).
(the
5
6
Using Your New TV
RM-952
|
|
|
> |
|
