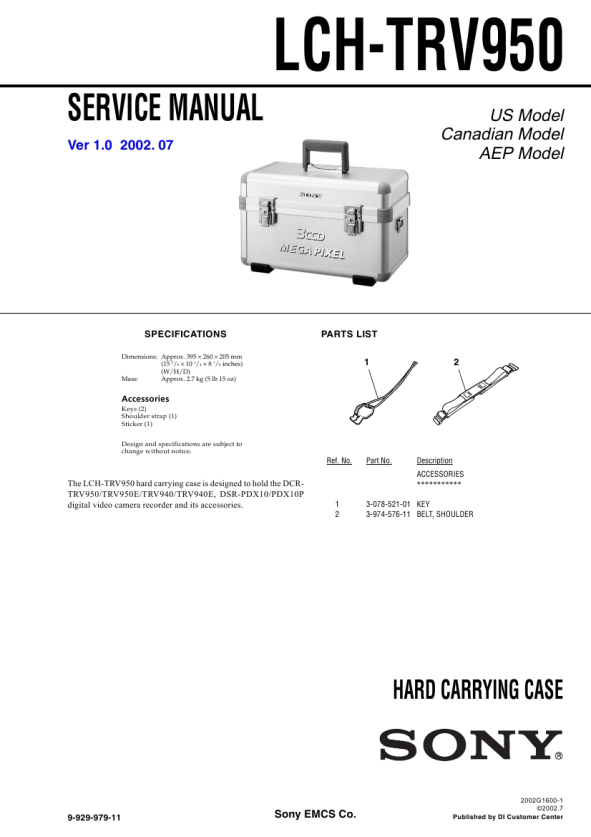

LCH-TRV950
SERVICE MANUAL
Ver 1.0 2002. 07
US Model Canadian Model AEP Model
SPECIFICATIONS
Dimensions: Approx. 395 � 260 � 205 mm (15 5/8 � 10 1/4 � 8 1/8 inches) (W/H/D) Mass: Approx. 2.7 kg (5 lb 15 oz)
PARTS LIST
1
2
Accessories
Keys (2) Shoulder strap (1) Sticker (1) Design and specifications are subject to change without notice.
Ref. No.
Part No.
Description ACCESSORIES ***********
The LCH-TRV950 hard carrying case is designed to hold the DCRTRV950/TRV950E/TRV940/TRV940E, DSR-PDX10/PDX10P digital video camera recorder and its accessories.
1 2
3-078-521-01 KEY 3-974-576-11 BELT, SHOULDER
HARD CARRYING CASE
9-929-979-11
Sony EMCS Co.
2002G1600-1 ©2002.7 Published by DI Customer Center
|
|
|
> |
|
