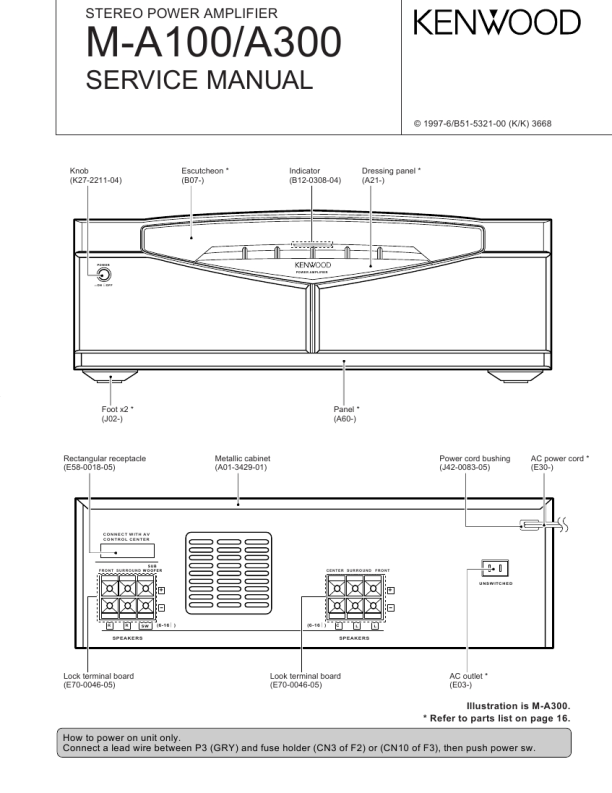

M-A100/A300
DISASSEMBLY FOR REPAIR
1. Remove the 17 screws (1), then remove main PCB. 2. Stand the set with right side downward, then connect the GND of the PCB (X07) (A/4) and the rear panel and the chassis with 2 alligator clips2.
