Allgemeiner Teil / General Section

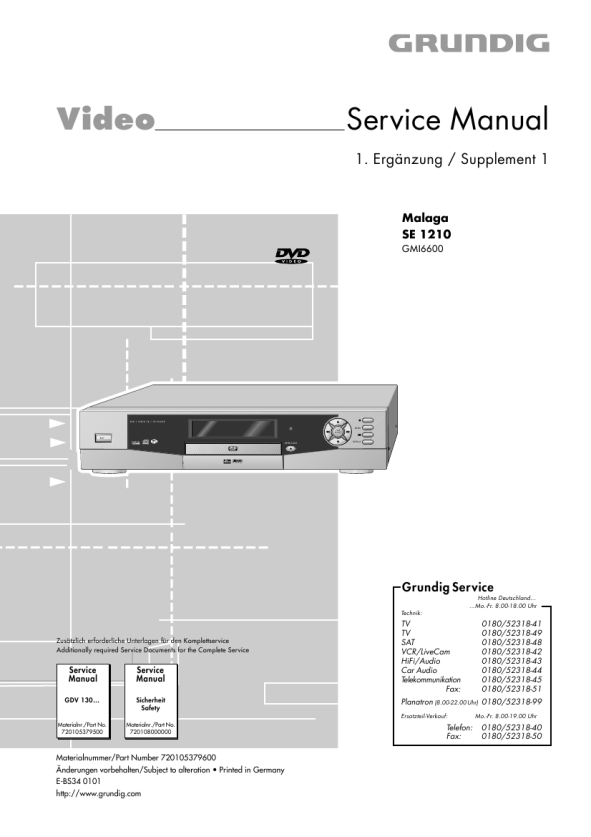

Malaga SE 1210
Es gelten die Vorschriften und Sicherheitshinweise gemä� dem Service Manual "Sicherheit", Materialnummer 720108000000, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid as provided by the "Safety" Service Manual, part number 720108000000, as well as the respective national deviations.
Einführung
Diese Service-Manual-Ergänzung enthält die Ersatzteillisten der Geräteserie Malaga SE 1210. Des Weiteren ist das Wiederherstellen der Gerätefunktion nach Austausch des EEPROMs (U204) oder der Chassisplatte beschrieben. Grundlage für den Service sind: � Service Manual GDV 130, GDV130/2, GDV 130/4 (Materialnummer 720105379500) � 1. Ergänzung (Materialnummer 720105379600) � Service Manual "Sicherheit" (Materialnummer 720108000000)
Introduction
This service manual addition contains the spare parts lists for the sets of the Malaga SE 1210 series. It also describes how to recover the functions of the set after replacing the EEPROM (U204) or the chassis board. Basic instructions for servicing are given in the: � Service Manual GDV 130, GDV130/2, GDV 130/4 (Part number 720105379500) � Supplement 1 (Part number 720105379600) � Service Manual "Safety" (Part number 720108000000)
Servicehinweis
Malaga SE 1210 Wiederherstellen der Gerätefunktion nach Austausch des EEPROMs (U204) oder der Chassisplatte � CD-Schublade öffnen � Folgende Tasten der Fernbedienung nacheinander drücken: "SETUP", "2", "2", "0", "0", "0", "STEP", "SHUFFLE", "NEXT"
Service Instruction
Malaga SE 1210 Reactivation of the DVD-Player after exchanging the EEPROMs (U204) or the Chassis board � open CD tray � Press successively the following keys of the remote control: "SETUP", "2", "2", "0", "0", "0", "STEP", "SHUFFLE", "NEXT"
2
GRUNDIG Service
|
|
|
> |
|
