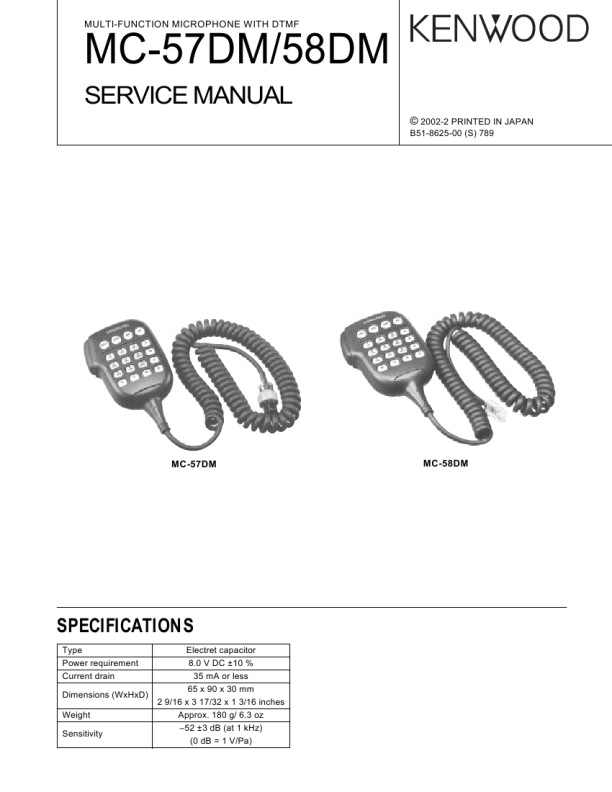

MULTI-FUNCTION MICROPHONE WITH DTMF
MC-57DM/58DM
SERVICE MANUAL
© 2002-2 PRINTED IN JAPAN
B51-8625-00 (S) 789
MC-57DM
MC-58DM
SPECIFICATIONS
Type Power requirement Current drain Electret capacitor 8.0 V DC ±10 % 35 mA or less 65 x 90 x 30 mm Dimensions (WxHxD) 2 9/16 x 3 17/32 x 1 3/16 inches Weight Approx. 180 g/ 6.3 oz �52 ±3 dB (at 1 kHz) Sensitivity (0 dB = 1 V/Pa)
|
|
|
> |
|
