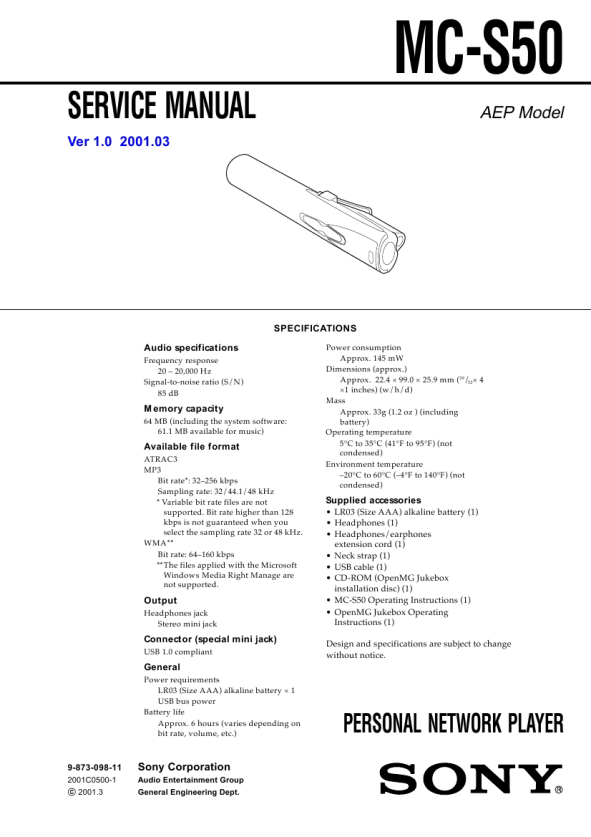

MC-S50
5. Firmware Info Check The DSP program version and the flash memory capacity can be checked. (block 0) The version at the shipment is as follows. (Versions will vary if updated) Version Flash memory size 51 64094208
6. Sub-CPU Info Check The Sub-CPU program version can be checked. (block qa) The version at the shipment is as follows. (Versions will vary if updated) Version 30
7. Key Check Click the block qs while pressing a key on the set, and �ON� is displayed in the block associated with the pressed key, so that the key operation can be checked.
1-4.
Required System Configuration
�
� IBM PC/AT � and compatibles CPU: MMX� Pentium� 233 MHz and above (Pentium II 400 MHz and above recommended) Hard disk drive space: 20 MB and above (Free space is required, depending on the version of Windows 98 and the size of the audio data you are using.) RAM: 64 MB and above CD-ROM drive Sound Board: Creative SoundBlaster 16 compatible Default built-in USB port � Operating system: The default installation of Windows � 98 English version (The product does not work on Windows 95/3.1 or Windows NT. Not assured trouble-free if you use an upgrade version from Windows 95/3.1 to Windows 98.) � Display: SVGA (800 � 600 pixel) (supports High Color (16 bit) and above) � Internet access
1-5.
Adjustment When Board was Replaced/Repaired
When a part on the POWER board was replaced due to the repair or a combination of LOGIC board and POWER board was changed due to the board replacement, perform 1. "Readjustment of Voltage for Battery Threshold Value" and 2. "Execution of Play Info Initialize" in [Work Procedure]. Replacing the board in this set will cause the status as shown in Table 1-4. Table 1-4. Board name LOGIC board Set status after board replacement Music data and music information data stored in the set are cleared and not restored.
Precautions 1. Do not disconnect the USB cable in the midway of work. 2. If the operation on the PC side is not accepted during work, disconnect the USB cable and close the �apollo_service.exe� file, then restart from the beginning.
6
|
|
|
> |
|
