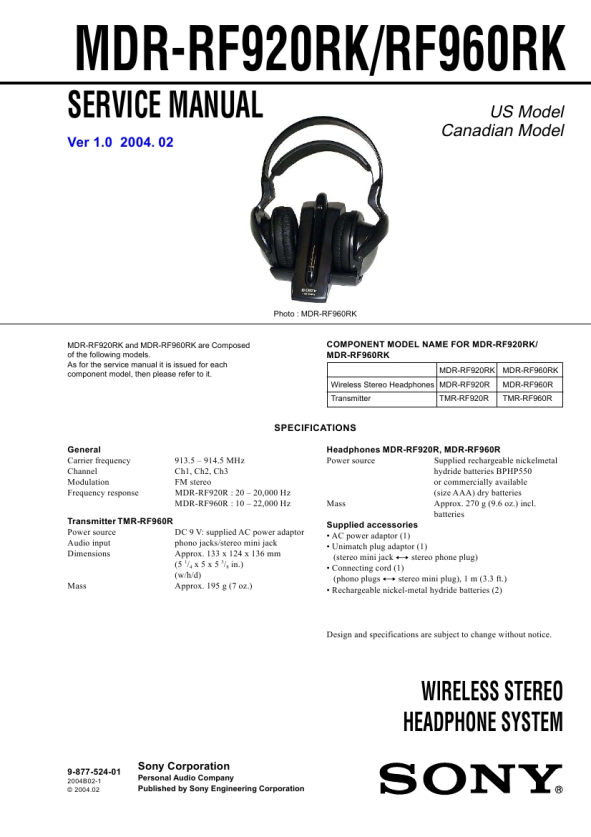

MDR-RF920RK/RF960RK
SERVICE MANUAL
Ver 1.0 2004. 02
US Model Canadian Model
Photo : MDR-RF960RK
MDR-RF920RK and MDR-RF960RK are Composed of the following models. As for the service manual it is issued for each component model, then please refer to it.
COMPONENT MODEL NAME FOR MDR-RF920RK/ MDR-RF960RK
MDR-RF920RK MDR-RF960RK Wireless Stereo Headphones MDR-RF920R Transmitter TMR-RF920R MDR-RF960R TMR-RF960R
SPECIFICATIONS
General Carrier frequency Channel Modulation Frequency response 913.5 � 914.5 MHz Ch1, Ch2, Ch3 FM stereo MDR-RF920R : 20 � 20,000 Hz MDR-RF960R : 10 � 22,000 Hz Headphones MDR-RF920R, MDR-RF960R Power source Supplied rechargeable nickelmetal hydride batteries BPHP550 or commercially available (size AAA) dry batteries Mass Approx. 270 g (9.6 oz.) incl. batteries Supplied accessories � AC power adaptor (1) � Unimatch plug adaptor (1) (stereo mini jack y stereo phone plug) � Connecting cord (1) (phono plugs y stereo mini plug), 1 m (3.3 ft.) � Rechargeable nickel-metal hydride batteries (2)
Transmitter TMR-RF960R Power source DC 9 V: supplied AC power adaptor Audio input phono jacks/stereo mini jack Dimensions Approx. 133 x 124 x 136 mm (5 1/4 x 5 x 5 3/8 in.) Mass (w/h/d) Approx. 195 g (7 oz.)
Design and specifications are subject to change without notice.
WIRELESS STEREO HEADPHONE SYSTEM
9-877-524-01
2004B02-1 © 2004.02
Sony Corporation
Personal Audio Company Published by Sony Engineering Corporation
|
|
|
> |
|
