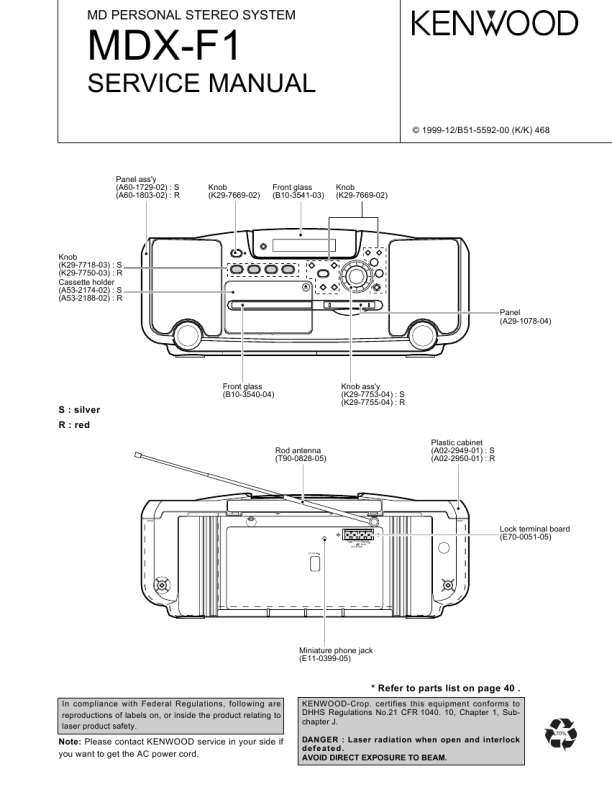

MDX-F1
DISASSEMBLY FOR REPAIR
How to Remove Door Ass'y
Insert the screw driver to contact of door ass'y and sub panel if remove door ass'y.
How to Disassemble Front Panel and Rear Panel
1 2 3 4 Remove 3 screws from bottom side(1X3). Remove 8 screws on rear panel(2X8). Remove 3 screws on rod ant(3X3). Lift rear side of top cover and remove it.
3 x1
2 x3
2 x2
3 x1
3 x1
2 x3
1 x1
1 x1 1 x1
FIG.1
BOTTOM
1 x3
FRONT PANEL BOTTOM
5 Remove 4 screws(4X4). 6 Lift and slide CD parts of top cover by using handle 7 Remove 6 long screws(5X6), slide front panel frontwards.
4 4
4 4
5
5 5
5
FIG.2
4
5 5
FIG.3
|
|
|
> |
|
