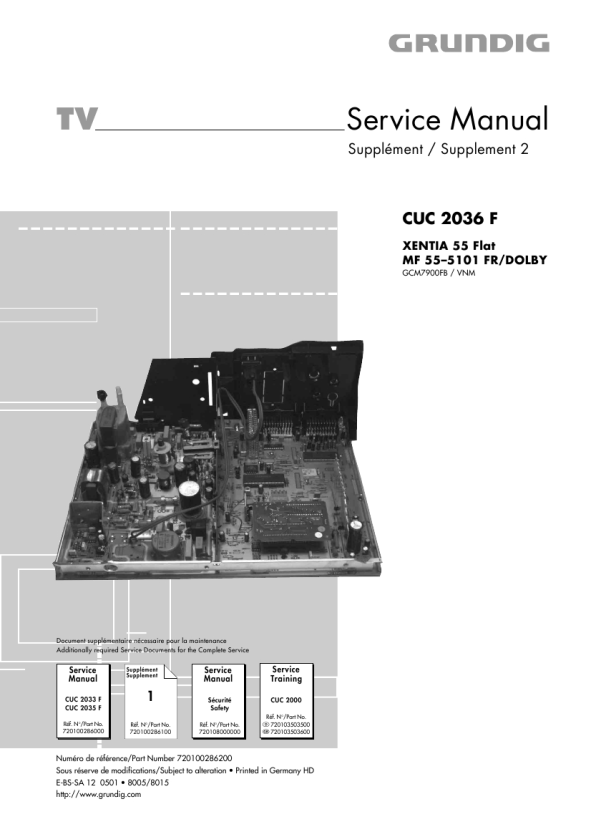

Partie générale / General Section
CUC 2036 F
Caractéristiques techniques / Technical Data
XENTIA 55 FLAT MF 55�5101 FR / DOLBY CUC 2036 F (VNM) Tube image / Picture Tube Taille de I'image Visible picture Taille du tube Screen diagonal Angle de déviation Deflection angle Fréquence image Vertical frequency Electronique / Electronic Nombre de programmes mémorisables Programme positions Tuner 99 TV + 3 AV PLL fréquence synthesizer tuning UHF/VHF PLL frequency synthesizer tuning UHF/VHF PAL / SECAM / NTSC 4,43MHz / B/G, L/L', I (Mono) Allemand A2 pour B/G/D/K German A2 for B/G/D/K Nicam 5,85MHz (BG, L) + 6,52MHz (I) 8 pages de text TOP/FLOF, VPS, 8 pages TOP/FLOF-text, VPS, Stereo 2 x 8W 51cm 55cm (21") Real Flat, Black Line FX, Philips 90° 50Hz
Normes de réception TV TV-Standards
Systèmes stéréo Stereo systems Télétexte Teletext Puissance musicale Music power Connexions en façade / Connections Front
Casque Headphones
Fiche jack stéréo 3,5mm, volume réglable, sélection voix droite / voix gauche en double-son Stereo 3.5mm jack, adjustable volume, Individual channel selection with dual-sound broadcasts 1 x Cinch en position AV3 1 x Cinch in AV3 position 2 x Cinch
Video IN Audio IN Connexions au dos / Connections Rear Panel
Entrée/sortie FBAS, Entrée SBAS, Entrée RVB Euro AV 1 (noire/black) CCVS in-/output, SBAS input, RGB input
Entrée/sortie FBAS, Entrée SBAS, Entrée RVB Euro AV 2 (noire/black) CCVS in-/output, SBAS input, RGB input Alimentation / Mains Stage Tension secteur (Plage de variation) Mains voltage (variable) Fréquence Mains frequency Consommation normale Power consumption Consommation en veille Standby consumption 230V ±15% 50 / 60Hz env. / ca. 70W env. / ca. 5W
4
GRUNDIG Service
|
|
 |
> |
|
