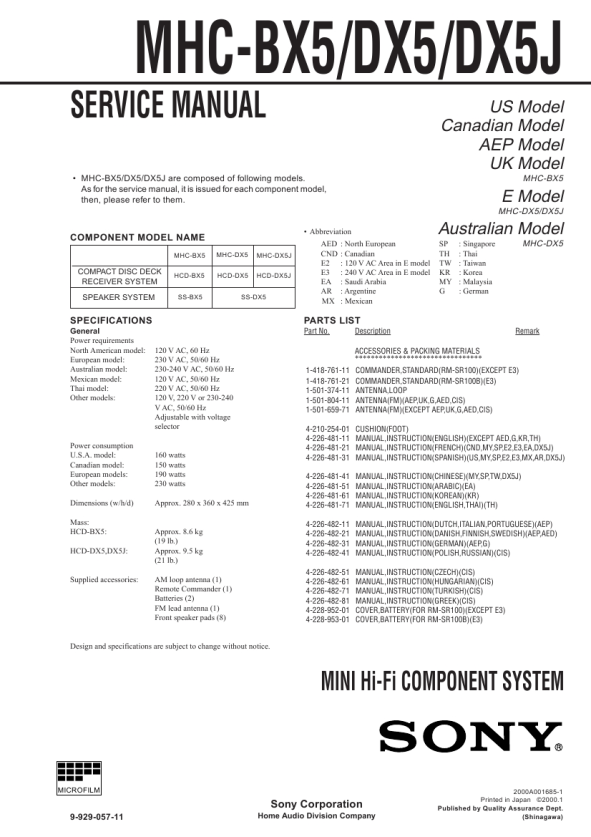

MHC-BX5/DX5/DX5J
SERVICE MANUAL
� MHC-BX5/DX5/DX5J are composed of following models. As for the service manual, it is issued for each component model, then, please refer to them.
US Model Canadian Model AEP Model UK Model
MHC-BX5
E Model
MHC-DX5/DX5J
COMPONENT MODEL NAME
MHC-BX5 MHC-DX5 HCD-DX5 MHC-DX5J HCD-DX5J
� Abbreviation AED CND E2 E3 EA AR MX : North European : Canadian : 120 V AC Area in E model : 240 V AC Area in E model : Saudi Arabia : Argentine : Mexican
Australian Model
SP TH TW KR MY G : Singapore : Thai : Taiwan : Korea : Malaysia : German
MHC-DX5
COMPACT DISC DECK RECEIVER SYSTEM SPEAKER SYSTEM
HCD-BX5
SS-BX5
SS-DX5
SPECIFICATIONS
General Power requirements North American model: European model: Australian model: Mexican model: Thai model: Other models: 120 V AC, 60 Hz 230 V AC, 50/60 Hz 230-240 V AC, 50/60 Hz 120 V AC, 50/60 Hz 220 V AC, 50/60 Hz 120 V, 220 V or 230-240 V AC, 50/60 Hz Adjustable with voltage selector
PARTS LIST
Part No. Description Remark ACCESSORIES & PACKING MATERIALS ******************************** COMMANDER,STANDARD(RM-SR100)(EXCEPT E3) COMMANDER,STANDARD(RM-SR100B)(E3) ANTENNA,LOOP ANTENNA(FM)(AEP,UK,G,AED,CIS) ANTENNA(FM)(EXCEPT AEP,UK,G,AED,CIS)
1-418-761-11 1-418-761-21 1-501-374-11 1-501-804-11 1-501-659-71
4-210-254-01 CUSHION(FOOT) 4-226-481-11 MANUAL,INSTRUCTION(ENGLISH)(EXCEPT AED,G,KR,TH) 4-226-481-21 MANUAL,INSTRUCTION(FRENCH)(CND,MY,SP,E2,E3,EA,DX5J) 4-226-481-31 MANUAL,INSTRUCTION(SPANISH)(US,MY,SP,E2,E3,MX,AR,DX5J) 4-226-481-41 4-226-481-51 4-226-481-61 4-226-481-71 4-226-482-11 4-226-482-21 4-226-482-31 4-226-482-41 4-226-482-51 4-226-482-61 4-226-482-71 4-226-482-81 4-228-952-01 4-228-953-01 MANUAL,INSTRUCTION(CHINESE)(MY,SP,TW,DX5J) MANUAL,INSTRUCTION(ARABIC)(EA) MANUAL,INSTRUCTION(KOREAN)(KR) MANUAL,INSTRUCTION(ENGLISH,THAI)(TH) MANUAL,INSTRUCTION(DUTCH,ITALIAN,PORTUGUESE)(AEP) MANUAL,INSTRUCTION(DANISH,FINNISH,SWEDISH)(AEP,AED) MANUAL,INSTRUCTION(GERMAN)(AEP,G) MANUAL,INSTRUCTION(POLISH,RUSSIAN)(CIS) MANUAL,INSTRUCTION(CZECH)(CIS) MANUAL,INSTRUCTION(HUNGARIAN)(CIS) MANUAL,INSTRUCTION(TURKISH)(CIS) MANUAL,INSTRUCTION(GREEK)(CIS) COVER,BATTERY(FOR RM-SR100)(EXCEPT E3) COVER,BATTERY(FOR RM-SR100B)(E3)
Power consumption U.S.A. model: Canadian model: European models: Other models: Dimensions (w/h/d) Mass: HCD-BX5: HCD-DX5,DX5J:
160 watts 150 watts 190 watts 230 watts Approx. 280 x 360 x 425 mm
Approx. 8.6 kg (19 lb.) Approx. 9.5 kg (21 lb.) AM loop antenna (1) Remote Commander (1) Batteries (2) FM lead antenna (1) Front speaker pads (8)
Supplied accessories:
Design and specifications are subject to change without notice.
MINI Hi-Fi COMPONENT SYSTEM
MICROFILM
Sony Corporation
9-929-057-11
Home Audio Division Company
2000A001685-1 Printed in Japan ©2000.1 Published by Quality Assurance Dept. (Shinagawa)
