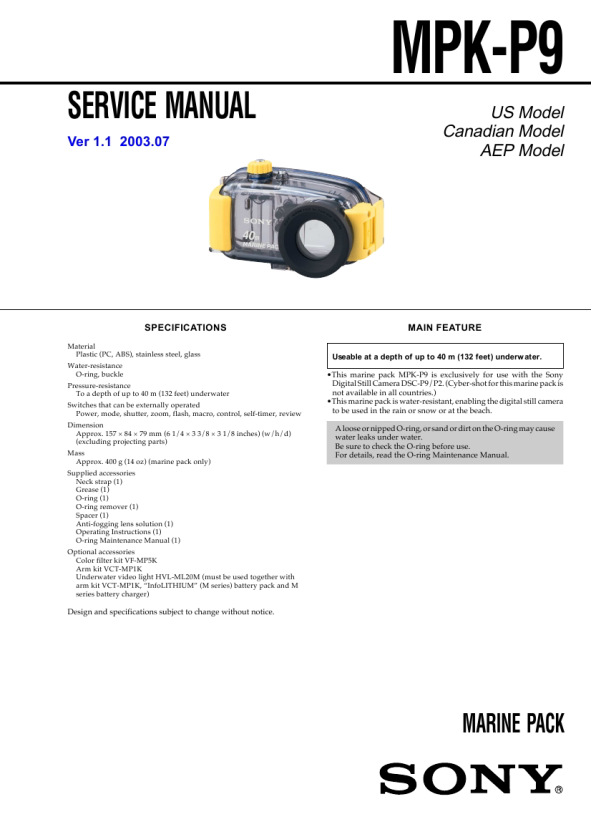

MPK-P9
Ref. No.
Part No.
Description ACCESSORIES ************
Remark
0
STRAP (B), NECK O RING (G110) (Note) SPACER MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH, DUTCH) 3-074-886-21 MANUAL, INSTRUCTION (GERMAN, SWEDISH, ITALIAN, PORTUGUESE) (AEP) 3-074-886-31 MANUAL, INSTRUCTION (RUSSIAN, ARABIC, TRADITIONAL CHINESE, KOREAN) (AEP) 3-071-370-01 GREASE (BLUE) 3-071-371-01 MANUAL, O RING MAINTENANCE 3-071-372-01 BAR, O RING RIM (-) 3-072-039-01 STOPPER LIQUID
3-065-130-31 3-071-364-01 3-071-366-01 3-074-886-11
The marked �0� are parts in relation to waterproof. Replace these components with Sony parts. Be sure to check up waterproof after repair. (Note) When putting grease the O ring (3-071-364-01), always use the grease of the blue tube of the accessory. When using the grease of the yellow tube and the grease of the other Inc., it hurts a O ring and it causes the water leakage
9-929-922-11
Sony EMCS Co.
�4�
2003G0500-1 C 2003. 7 Published by DI CS Strategy Div
|
|
|
> |
|
