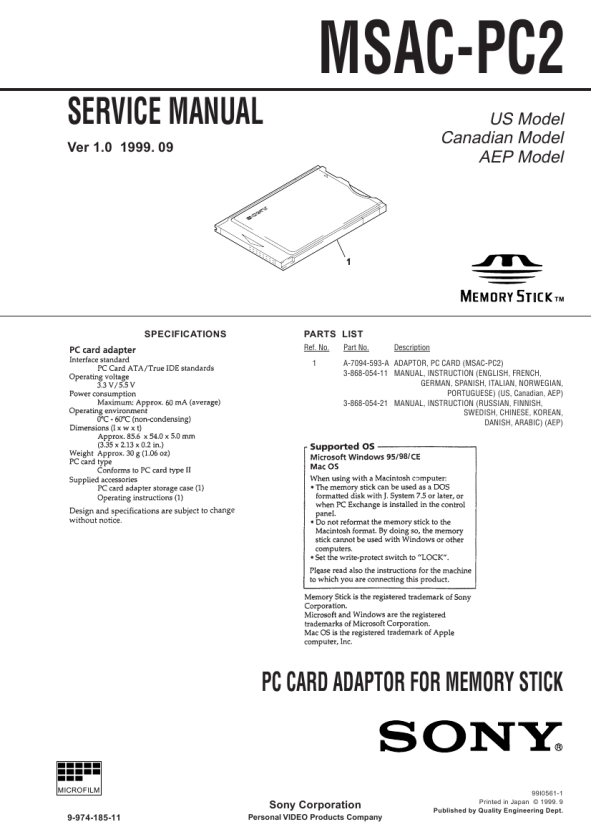

MSAC-PC2
SERVICE MANUAL
Ver 1.0 1999. 09
US Model Canadian Model AEP Model
1
TM
SPECIFICATIONS
PARTS LIST
Ref. No. 1 Part No. Description A-7094-593-A ADAPTOR, PC CARD (MSAC-PC2) 3-868-054-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH, GERMAN, SPANISH, ITALIAN, NORWEGIAN, PORTUGUESE) (US, Canadian, AEP) 3-868-054-21 MANUAL, INSTRUCTION (RUSSIAN, FINNISH, SWEDISH, CHINESE, KOREAN, DANISH, ARABIC) (AEP)
98/
PC CARD ADAPTOR FOR MEMORY STICK
MICROFILM
99I0561-1
Sony Corporation
9-974-185-11
Personal VIDEO Products Company
Printed in Japan © 1999. 9 Published by Quality Engineering Dept.
|
