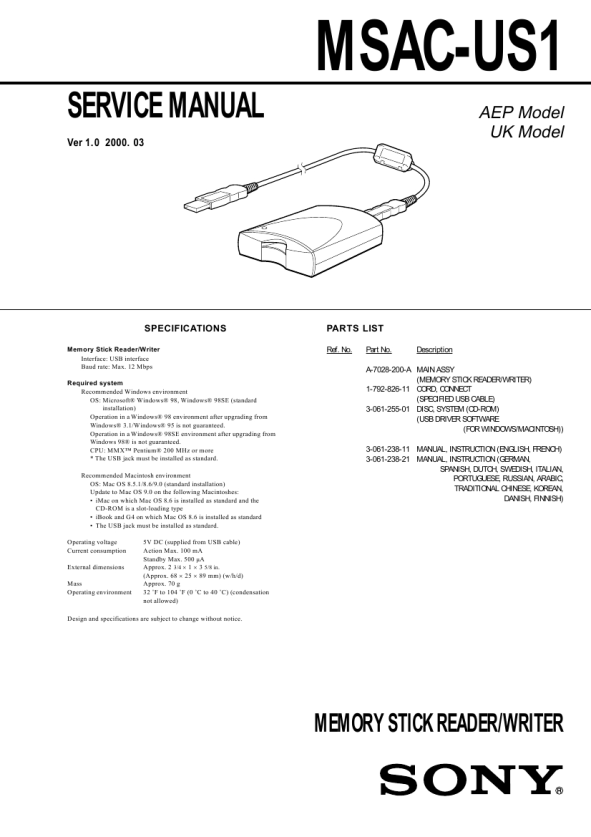

MSAC-US1
SERVICE MANUAL
Ver 1.0 2000. 03
AEP Model UK Model
SPECIFICATIONS
Memory Stick Reader/Writer Interface: USB interface Baud rate: Max. 12 Mbps Required system Recommended Windows environment OS: Microsoft® Windows® 98, Windows® 98SE (standard installation) Operation in a Windows® 98 environment after upgrading from Windows® 3.1/Windows® 95 is not guaranteed. Operation in a Windows® 98SE environment after upgrading from Windows 98® is not guaranteed. CPU: MMX� Pentium® 200 MHz or more * The USB jack must be installed as standard. Recommended Macintosh environment OS: Mac OS 8.5.1/8.6/9.0 (standard installation) Update to Mac OS 9.0 on the following Macintoshes: � iMac on which Mac OS 8.6 is installed as standard and the CD-ROM is a slot-loading type � iBook and G4 on which Mac OS 8.6 is installed as standard � The USB jack must be installed as standard. Operating voltage Current consumption External dimensions Mass Operating environment 5V DC (supplied from USB cable) Action Max. 100 mA Standby Max. 500 µA Approx. 2 3/4 � 1 � 3 5/8 in. (Approx. 68 � 25 � 89 mm) (w/h/d) Approx. 70 g 32 �F to 104 �F (0 �C to 40 �C) (condensation not allowed)
PARTS LIST
Ref. No. Part No. Description
A-7028-200-A MAIN ASSY (MEMORY STICK READER/WRITER) 1-792-826-11 CORD, CONNECT (SPECIFIED USB CABLE) 3-061-255-01 DISC, SYSTEM (CD-ROM) (USB DRIVER SOFTWARE (FOR WINDOWS/MACINTOSH)) 3-061-238-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH) 3-061-238-21 MANUAL, INSTRUCTION (GERMAN, SPANISH, DUTCH, SWEDISH, ITALIAN, PORTUGUESE, RUSSIAN, ARABIC, TRADITIONAL CHINESE, KOREAN, DANISH, FINNISH)
Design and specifications are subject to change without notice.
MEMORY STICK READER/WRITER
|
|
|
> |
|
