4) Turn the cleaning belt set shaft @ of the fixing cleaner assembly clockwise, and detach the fixing cleaning belt a,.
* After attaching the cleaning belt, insert a flatblade screwdriver into the fixing assembly drive shaft, and turn it counterclockwise until the belt is taut.
Figure 4-708
Figure4-707 4. Attaching the Fixing Cleaning Belt
The feed shaft, take-up shaft, and cleaning belt are constructed as a single entity. To attach the fixing cleaning belt, go through the foregoing steps but in reverse order. * Wind the cleaning belt around the take-up shaft two to three times. Make sure that the area it comes into contact with the roller is impregnated with oil. Checkthat Reference: The fixing cleaner assembly is located above the fixing assembly, and cleans the upper roller by bringing a belt impregnated with silicone oil into contact. The cleaning belt is 15 m in length; a red band is printed on the belt 2.5 m from its end.
dote:
I.
Note:
theftxing cleaning belt is not askew
Be sure to clear the setting of �WEB� in counter :: mode (service mode) whenever you have sre-,,( pIa& the fixing cleaning belt.
,^
andh free of stack and wrinkling. ..
COPVNINNT 0 1993 CANON INC.
CANON NP6WO REV.0 JAN. 1993 PRINTED IN JAPAN (IMPNIME AU JAPON)
4-57
 $4.99 NP6030 CANON

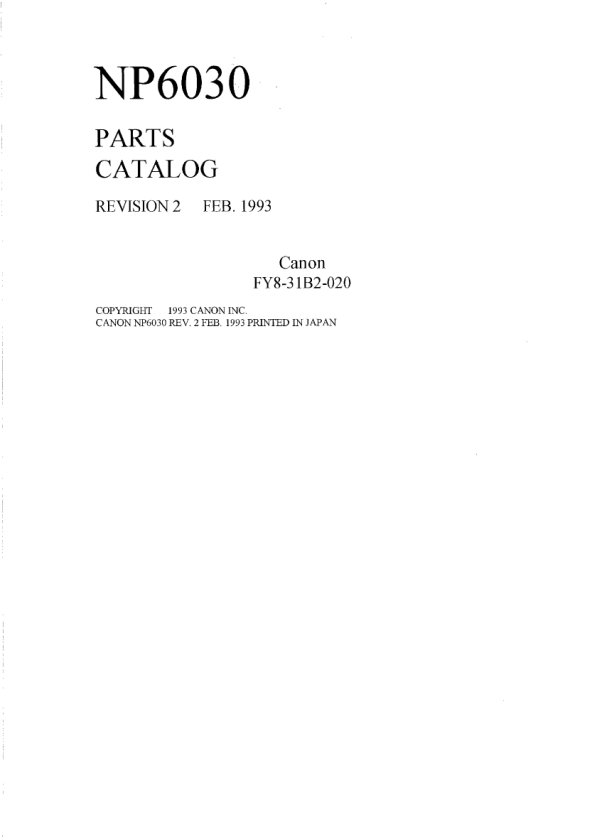

Parts Catalog Parts Catalog only. It's available in PDF format. Useful, if Your equipment is broken and You need t…
|
|
|
> |
|
