CHAPTER 2 STANDARDS AND ADJUSTMENTS
9-1Adjusting the Position of the Pick-Up Roller Releasing Solenoid (front paper deck) Adjust the position of the solenoid so that the left edge of the right solenoid arm 2 is 57.2 ±0.5 mm from the center of the solenoid mount as shown in Figure 2-34a.
57.2±0.5mm
A
Figure 2-34a 9-2 Adjusting the Position of the Pick-Up Roller Releasing Solenoid (paper deckA1) Before removing the deck pick-up roller releasing solenoid q from the support plate, remember the position of the two fixing screws w on the solenoid with reference to the scale on the support plate. Or, mark the position of the solenoid on the support plate with a scribe. If you are installing the solenoid on its own, be sure to fix it in its initial position. w q
Figure 2-34b
2-27

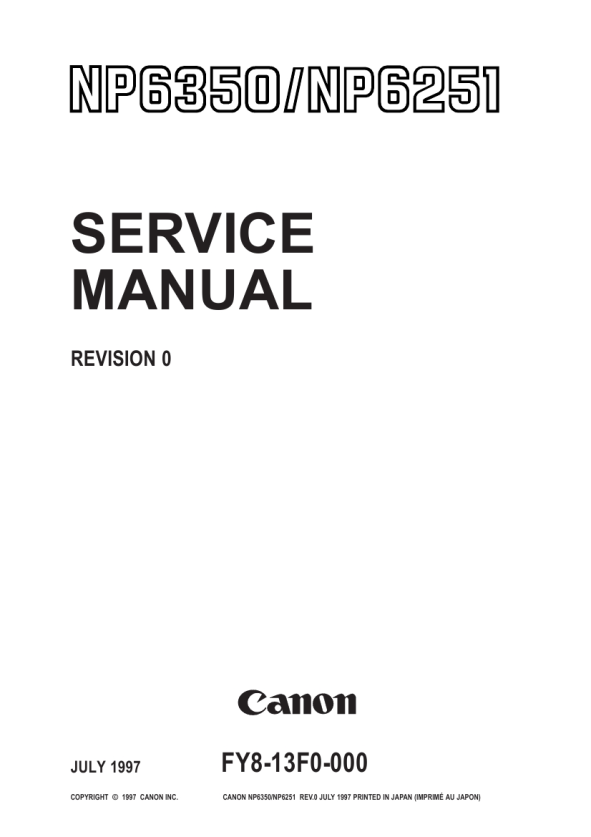

 $4.99 NP6350 CANON
