4. MECHANICAL SYSTEM
5) Hang up the short rope end f now in the hook l and fasten you it with tape m on the left side. The rope end should be at the opening on the left side (see fig.).
under the mirror mounting plate 1 h and the mounting plate of mirrors 2 and 3 i, over the role of p, left in front, and the role of q of the mirror mounting plate 2 and 3.
Fig. 4 - 219 Fig. 4 - 217
6) Lead the longer rope end n along the rope driving pulley A across the role of o. 7) Pull through the longer rope end n now
8) Fasten the longer rope end n to the wire clamp r and the end piece with tape s to the left side. The rope end should be at the opening on the left side (see fig.).
Fig. 4 - 218
 $4.99 NP6512 CANON

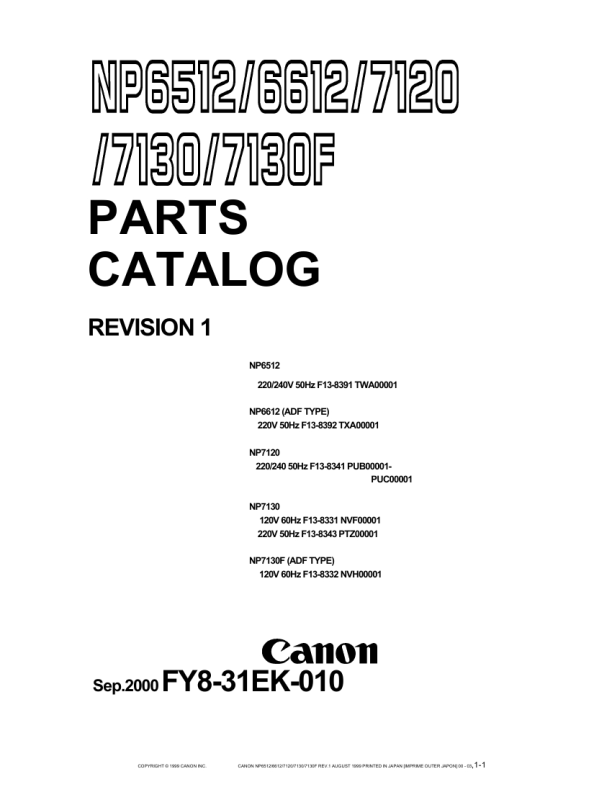

Parts Catalog Parts Catalog only. It's available in PDF format. Useful, if Your equipment is broken and You need t…
|
