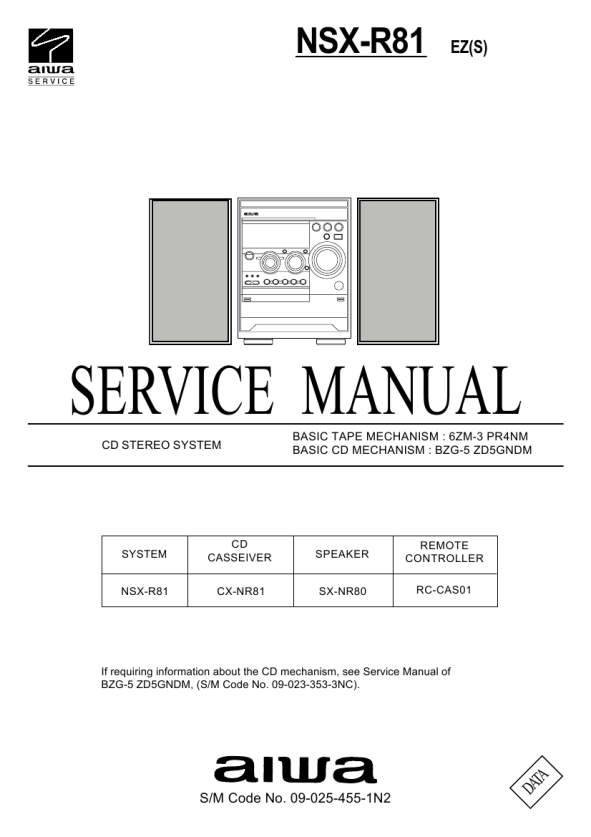

This is a service manual in every sense of the word ( French and German versions of the text are included, as well as English..)
There are explanations of the mechanical and electrical functions, plenty of mechanical drawings, and the needed schematics. The quality of the scanning is excellent - all the component values are clearly legible - and very usefully there are pcb component layouts, so you can find a component on the schematic, and then very quicky pinpoint its physical location on the relevant pcb.
I cannot see how I can give this manual any less than the maximum 5 stars! Great value for money, which will pay for itself immediately. Excellent all round!
;
the manual is great and especially hard to find... thanks for the great service and having a hard to find manuel_
;
Please tell us what you think and share your opinions with others. Be sure to focus your comments on the product. You will receive $2.50 of store credit for Your review.
;
hat alles sehr gut geklappt. Das Servicemaual ist gut zu verwenden. Die Pläne und Schrift
ist klar und leserlich. Außerdem preiswert. Grüße an alle Hifi-Bastler
;
I got the manual quickly after the payment was transfered (1 day). The manual was exactly what i needed and the updates via e-mail were great. Thanx!
ELECTRICAL ADJUSTMENT -2/7
<TUNER Adjustment> 1. VT Check (MW) Requirements � Measuring instrument: Digital multimeter Test points: VT, GND 1) Connect the digital multimeter between VT and GND. 2) Set the function to MW, and tune the receiving frequency of the unit at 1,602 kHz. 3) Check that the digital multimeter ranges under 9 V. 4) Tune the receiving frequency of the unit at 531 kHz. 5) Check that the digital multimeter ranges above 0.5 V. 2. VT Adjustment (LW) Requirements: Same as above. � Adjustment point: L942 1) Connect the digital multimeter between VT and GND. 2) Set the function to FM, and tune the receiving frequency of the unit at 144.0 kHz. 3) Adjust L942 so that the digital multimeter ranges at 1.3 ± 0.05 V. 3. VT Adjustment and Check (FM) Requirements: Same as the above. ï Adjustment point: L907 1) Connect the digital multimeter between VT and GND. 2) Set the function to FM, and tune the receiving frequency of the unit at 108.0 MHz. 3) Adjust L907 so that the digital multimeter ranges at 7.0 ± 0.1 V. 4) Tune the receiving frequency of the unit at 87.5 MHz. 5) Check that the digital multimeter ranges under 0.5 V. 4. CLOCK Check (MW) Requirements � Measuring instrument: Frequency counter Test point: CLOCK (IC801 24PIN), GND 1) Connect the frequency counter between CLOCK and GND. 2) Set the function to MW, and tune the receiving frequency of the unit at 1,710 kHz. 3) Check that the frequency counter ranges at 2,160 kHz ± 45 Hz.
