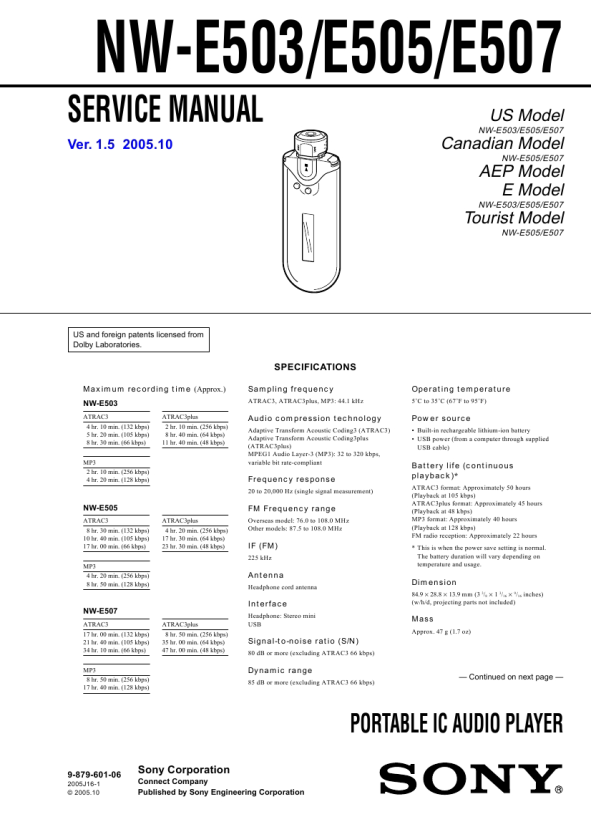

NW-E503/E505/E507
Adjusting the current time setting (Date-Time)
You can set and display (except in FM tuner) the current time.
Nx button Shuttle switch
2
Rotate the Shuttle switch to select �Date-Time>� and press the Nx button to confirm. The year digit is displayed in [ ].
Y MDhm [2005] 01 / 01 15 : 00
3
Rotate the Shuttle switch to adjust the �year� setting and press the Nx button to confirm. The month digit is displayed in [ ].
to >
to .
Y
M
D
h
m
2005 [01]/ 01 15 : 00
SEARCH/ MENU button
4
1
Press and hold the SEARCH/ MENU button for half a second while the audio player is stopped or receiving an FM signal. The menu screen is displayed.
As you did in step 3, adjust the settings for �month�, �date�, �hour�, and �minute�. After rotating the Shuttle switch to adjust the time and date setting, pressing the Nx button to confirm.
Repeat Mode Sound Volume Mode
To cancel the Menu mode
Press the SEARCH/MENU button to return the screen to the previous stage. Press repeatedly to exit menu mode.
To display the current time
Press the DISP/FM (Display/FM) button repeatedly until the �Clock� is displayed (page 26). Note, however, when the �Clock� is set to off in the Display Screen menu (page 27), you cannot display the current time by the procedure above. Notes � You cannot change the display mode while using the FM tuner. � If the unit is not used for a long time, your settings for date and time may need to be reset. � If the current time is not set, the display for the date and time will show �--�.
4
|
|
|
> |
|
