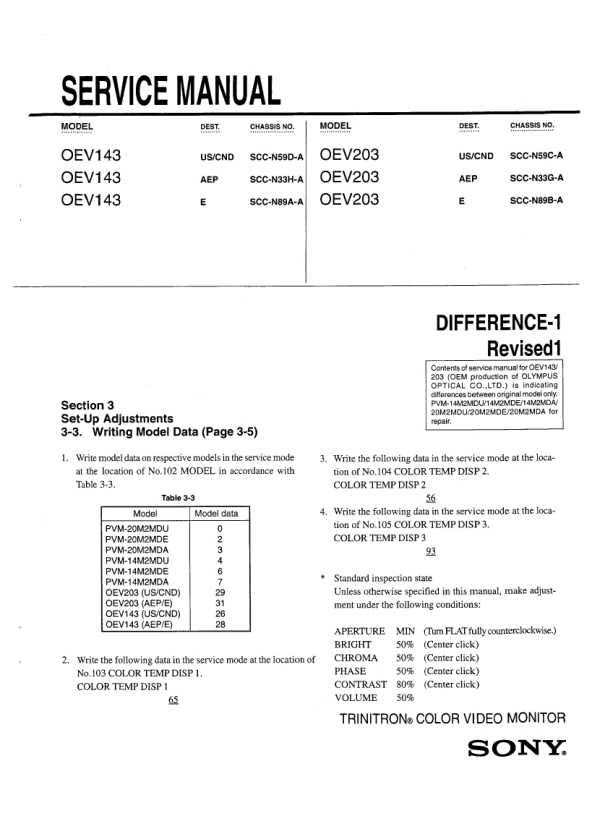

SERVICE MANUAL
MODEL ...............
DEST. ......... CHASSIS NO. ....................
............... MODEL
DEST. .........
CHASSIS NO. ....................
OEV-143 OEV-143
US/CND AEP
SCC-N59D-A SCC-N33H-A
OEV-203 OEV-203
US/CND AEP
SCC-N59C-A SCC-N33G-A
Contents of service manual for OEV-143/203 (OEM production of OLYMPUS OPTICAL CO.,LTD.) is indicating differences between original model only. PVM-14M2MDU/14M2MDE/14M2MDA/ 20M2MDU/20M2MDE/20M2MDA for repair.
DIFFERENCE-1
SECTION 7 EXPLODED VIEWS
7-2. PICTURE TUBE (14M2MDU/E/A) (PAGE 7-2)
PVM-14M2MDU/E/A OEV-143
51
53 52
53 54 52
REF NO.
51
PART NO.
X-4035-199-1
DESCRIPTION
BEZEL ASSY
REMARK
52-54
REF NO.
51
PART NO.
X-4035-691-1
DESCRIPTION
BEZEL ASSY
REMARK
52-54
TRINITRON® COLOR VIDEO MONITOR
|
|
|
> |
|
