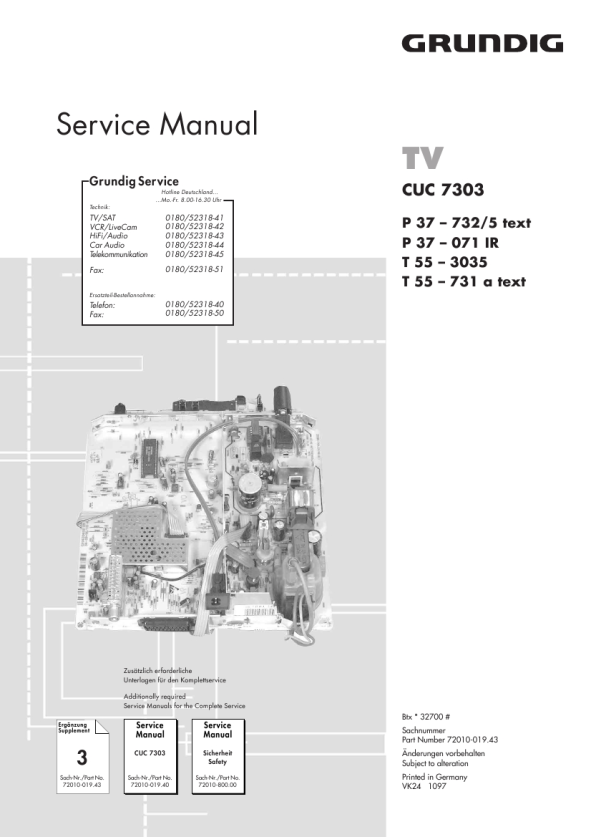

GRUNDIG Service 17
CUC 7303 Ersatzteillisten / Spare Parts Lists
Ersatzteilliste Spare Parts List 05 / 96
ERSETZT AUSGABE 11/95 SUBSTITUTE EDITION 11/95 POS. NR. ABB. POS. NO. FIG. SACHNUMMER ANZ. PART NUMBER QTY. BEZEICHNUNG
TV
BILDROHRPLATTE PICTURE TUBE BOARD
SACH-NR. / PART NO.: 29305-022.14 DESCRIPTION
Ersatzteilliste Spare Parts List 04 / 96
ERSETZT AUSGABE 2/96 SUBSTITUTE EDITION 2/96 POS. NR. ABB. POS. NO. FIG. SACHNUMMER ANZ. PART NUMBER QTY. BEZEICHNUNG
TV
BILDROHRPLATTE PICTURE TUBE BOARD
SACH-NR. / PART NO.: 29305-022.16 DESCRIPTION
d
BILDROHRFASSUNG
©
PICTURE TUBE SOCKET
d
BILDROHRFASSUNG
©
CRT SOCKET
0001.000
S
29303-751.13
0001.000
S
29303-752.14
POS. NR. POS. NO.
SACHNUMMER BEZEICHNUNG PART NUMBER DESCRIPTION
POS. NR. POS. NO.
SACHNUMMER BEZEICHNUNG PART NUMBER DESCRIPTION
POS. NR. POS. NO.
SACHNUMMER BEZEICHNUNG PART NUMBER DESCRIPTION
POS. NR. POS. NO.
SACHNUMMER BEZEICHNUNG PART NUMBER DESCRIPTION
C 716 CD 734 CD 742 CD 762 CD 781 R 751 R 771 T 736 T 741 T 756 T 761 T 776 T 781
8531-593-800 8325-004-148 8325-004-148 8325-004-148 8325-004-148 8796-101-135 8796-101-135 8303-406-421 8303-401-422 8303-406-421 8303-401-422 8303-406-421 8303-401-422
FOKO MKT10 4700PF 20% 1000V SMD DIODE LS 4148 SMD DIODE LS 4148 SMD DIODE LS 4148 SMD DIODE LS 4148 ESTR. 1 KOHM LIN FN �A� ESTR. 1 KOHM LIN FN �A� TRANS.BF 421 E6323SIE/PHI TRANS.BF 422 WW.BF 422 S TRANS.BF 421 E6323SIE/PHI TRANS.BF 422 WW.BF 422 S TRANS.BF 421 E6323SIE/PHI TRANS.BF 422 WW.BF 422 S
C 716 CD 734 CD 742 CD 762 CD 781 R 751 R 771 T 736 T 741 T 756 T 761 T 776 T 781
8531-593-800 8325-004-148 8325-004-148 8325-004-148 8325-004-148 8796-101-135 8796-101-135 8302-220-421 8302-220-871 8302-220-421 8302-220-871 8302-220-421 8302-220-871
FOKO MKT10 4700PF 20% 1000V SMD DIODE LS 4148 SMD DIODE LS 4148 SMD DIODE LS 4148 SMD DIODE LS 4148 ESTR. 1 KOHM LIN FN �A� ESTR. 1 KOHM LIN FN �A� TRANS.BF 421 SIE E6323 TRANS.BF 871 SG TFK/ TRANS.BF 421 SIE E6323 TRANS.BF 871 SG TFK/ TRANS.BF 421 SIE E6323 TRANS.BF 871 SG TFK/
Es gelten die Vorschriften und Sicherheitshinweise gemä� dem Service Manual "Sicherheit", Sach-Nummer 72010-800.00, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
Btx *32700#
! (!)
The regulations and safety instructions shall be valid as provided by the "Safety" Service Manual, part number 72010-800.00, as well as the respective national deviations.
�NDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Es gelten die Vorschriften und Sicherheitshinweise gemä� dem Service Manual "Sicherheit", Sach-Nummer 72010-800.00, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
Btx *32700#
! (!)
The regulations and safety instructions shall be valid as provided by the "Safety" Service Manual, part number 72010-800.00, as well as the respective national deviations.
�NDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
|
|
|
> |
|
